Ambiance Louvered Room

Sophisticated design meets innovative functionality.

The Ambiance Louvered Room combines sleek design, smart technology, and full weather protection with a watertight louver system. Available in various sizes with optional add-ons, it’s a stylish way to extend your living space outdoors. The Ambiance Elite is available with 8” sq beams and posts in custom sizes, and the Ambiance Kit is offered with 4” sq beams and posts in two sizes.

Ambiance Elite

Ambiance Elite

Powder coated, extruded aluminum with stainless steel components

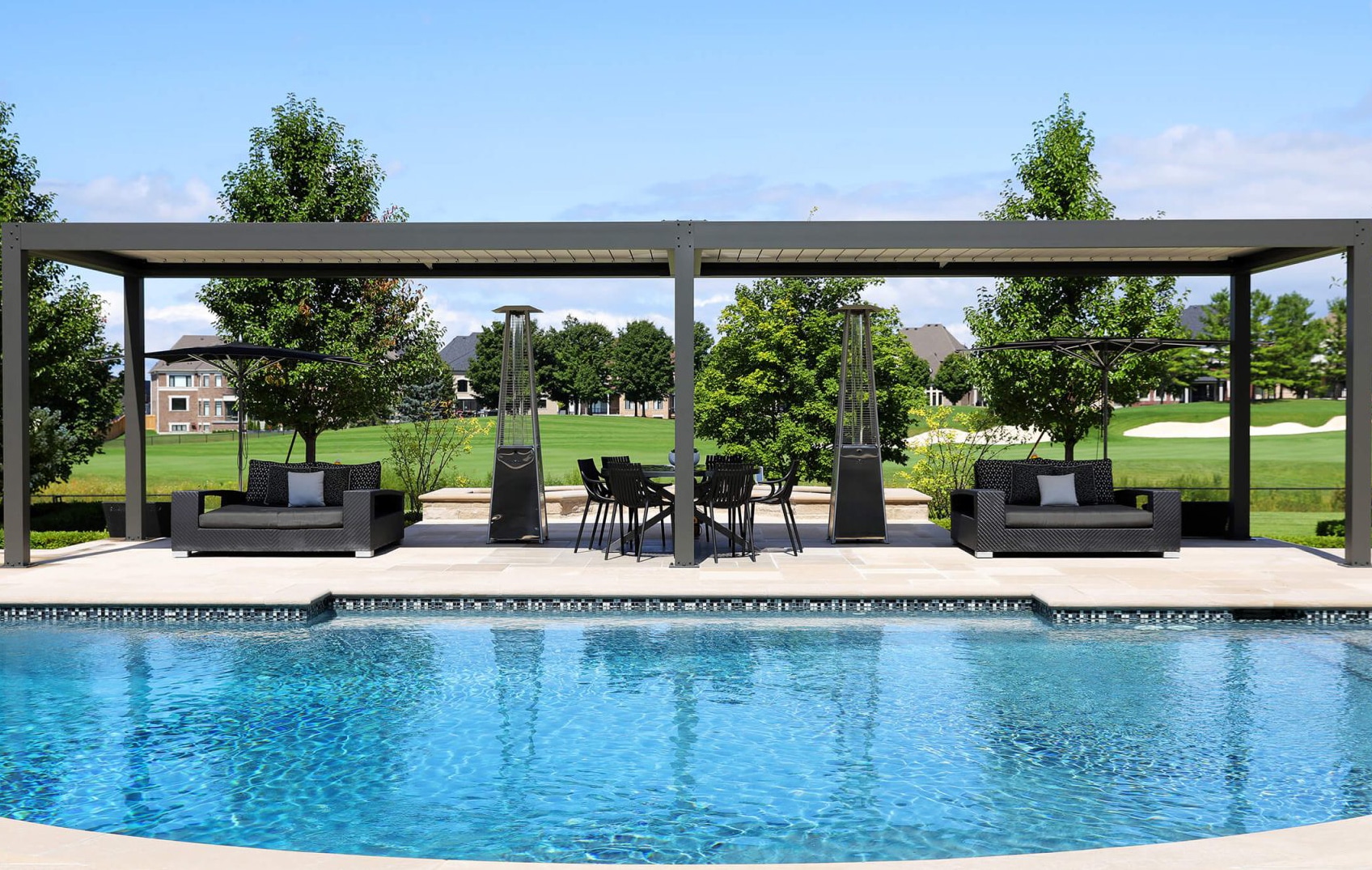

The aluminum Ambiance Elite is built with robust 8”x8” reinforced posts and beams and features an exclusive patented louver system that ensures complete watertight protection. Walpole Outdoors offers this louvered room in a variety of sizes with multiple add-on features.

Starting at $23,940 (10’ x 14’)

The Ambiance Elite frame and louvers can be mixed and matched for any combination of these colors.

Black

Umbra Gray

White

Integrated gutter pergola

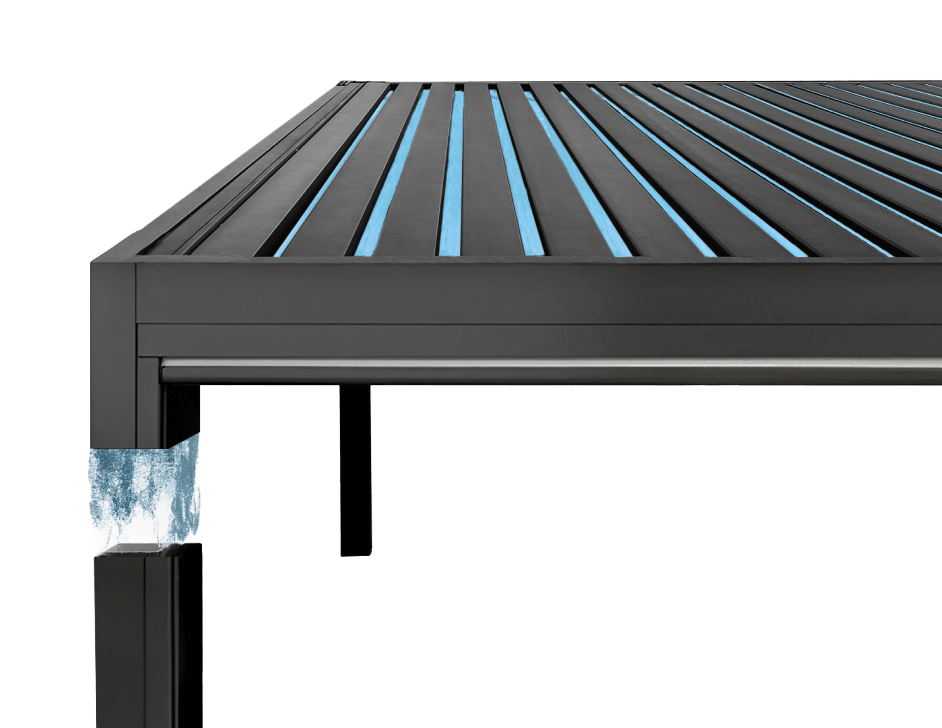

INTEGRATED GUTTER SYSTEM

An extraordinary water management solution, the integrated gutter system provides a water-tight seal to keep you dry during the heaviest of rainstorms.

Beam Profile with Gutter System

Beam Profile with Gutter System

Extruded beam and integrated gutters for water management.

Louvers

Louvers

Durable high-performance louvers designed to provide leakproof protection.

Post Profile

Post Profile

At 8”×8”, it’s the strongest aluminum pergola post on the market.

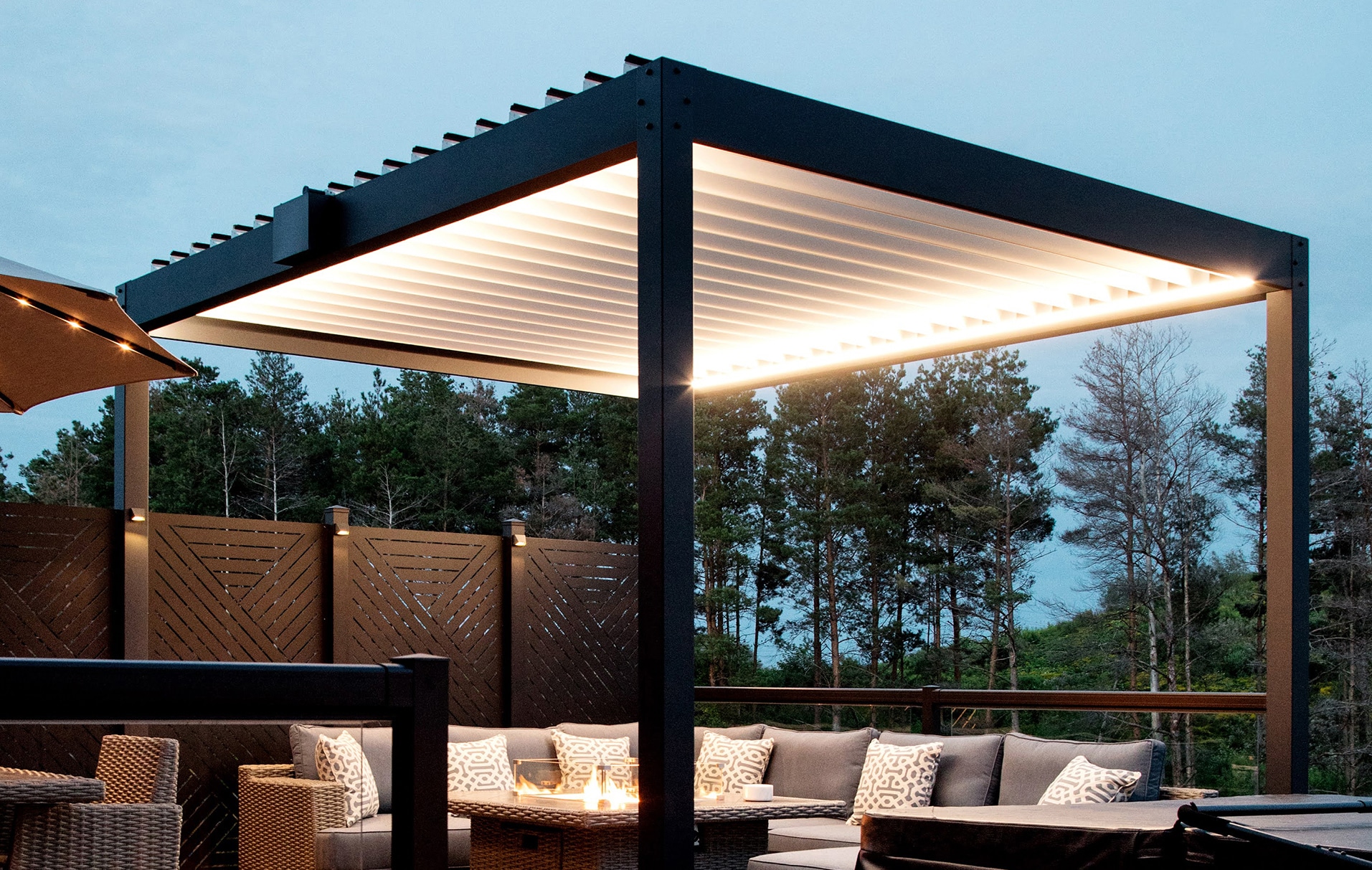

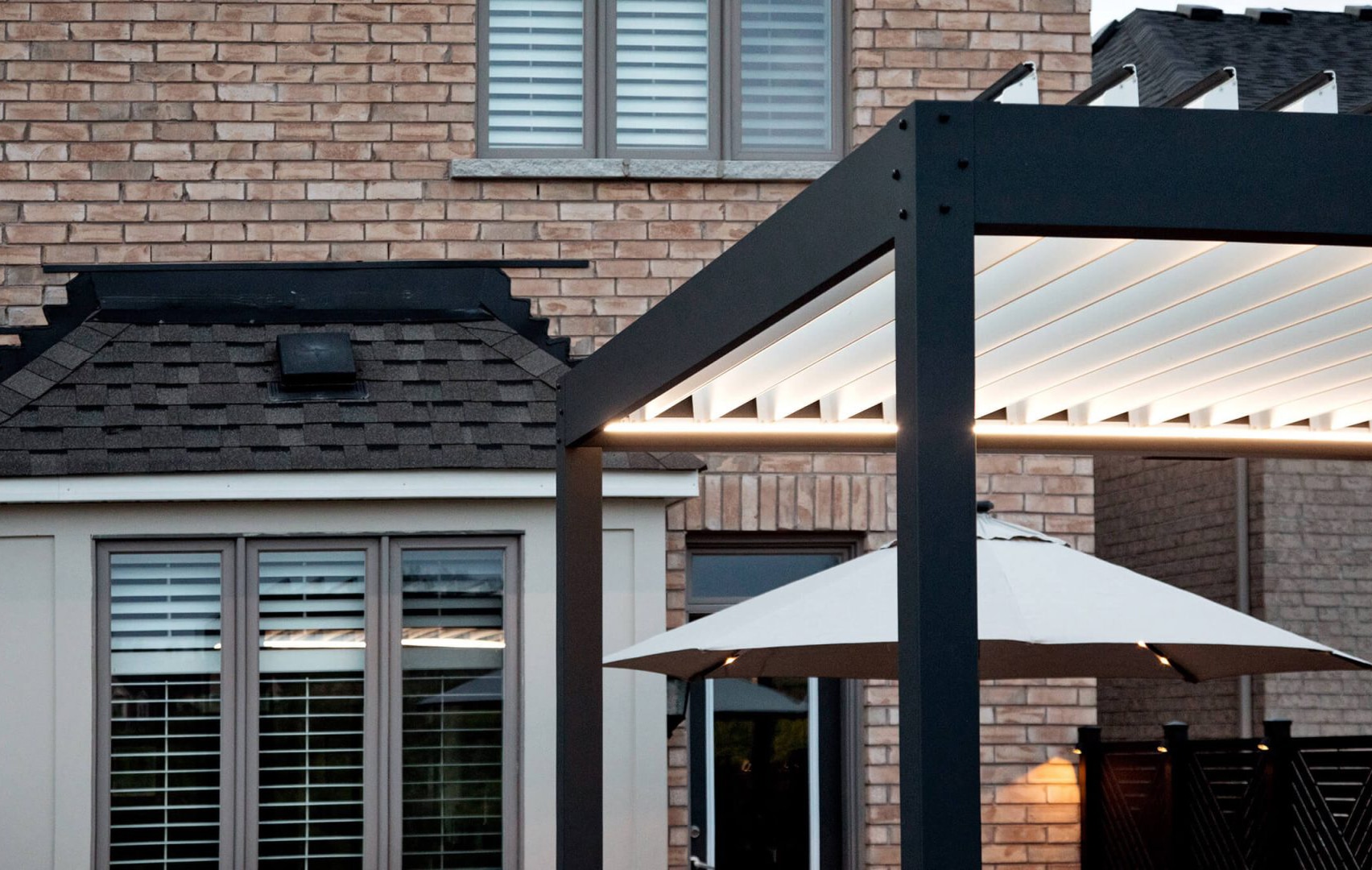

OPTIONAL FEATURE: LED LIGHTS

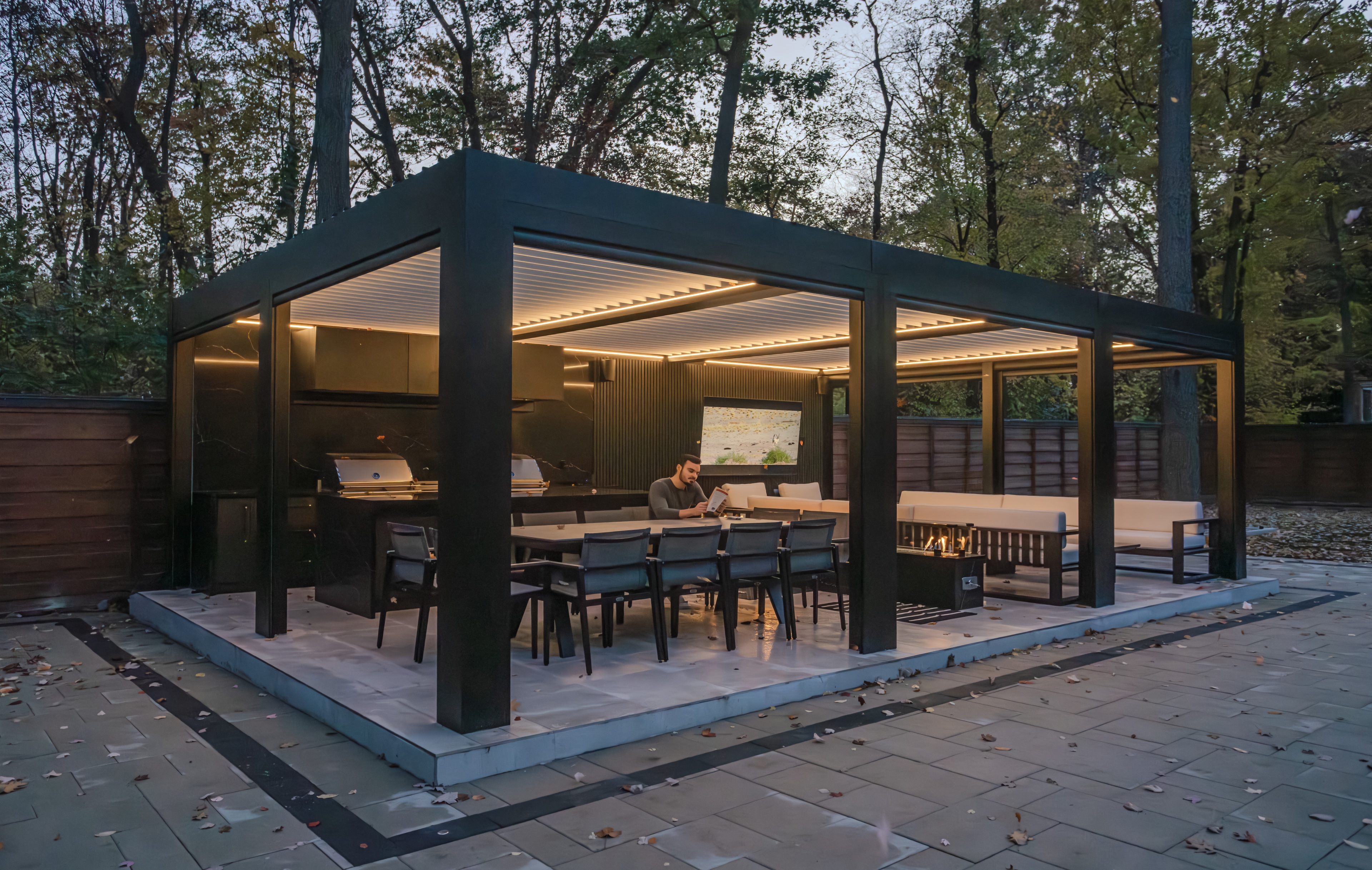

A warm white lighting creates a cozy, inviting atmosphere. Priced per bay, LED Lights seamlessly integrate into the design, providing ideal lighting without additional luminaries. Brightness levels can be adjusted with precision using a simple, intuitive remote control. Lights are built in to all four sides of the pergola.

Integrated gutter pergola

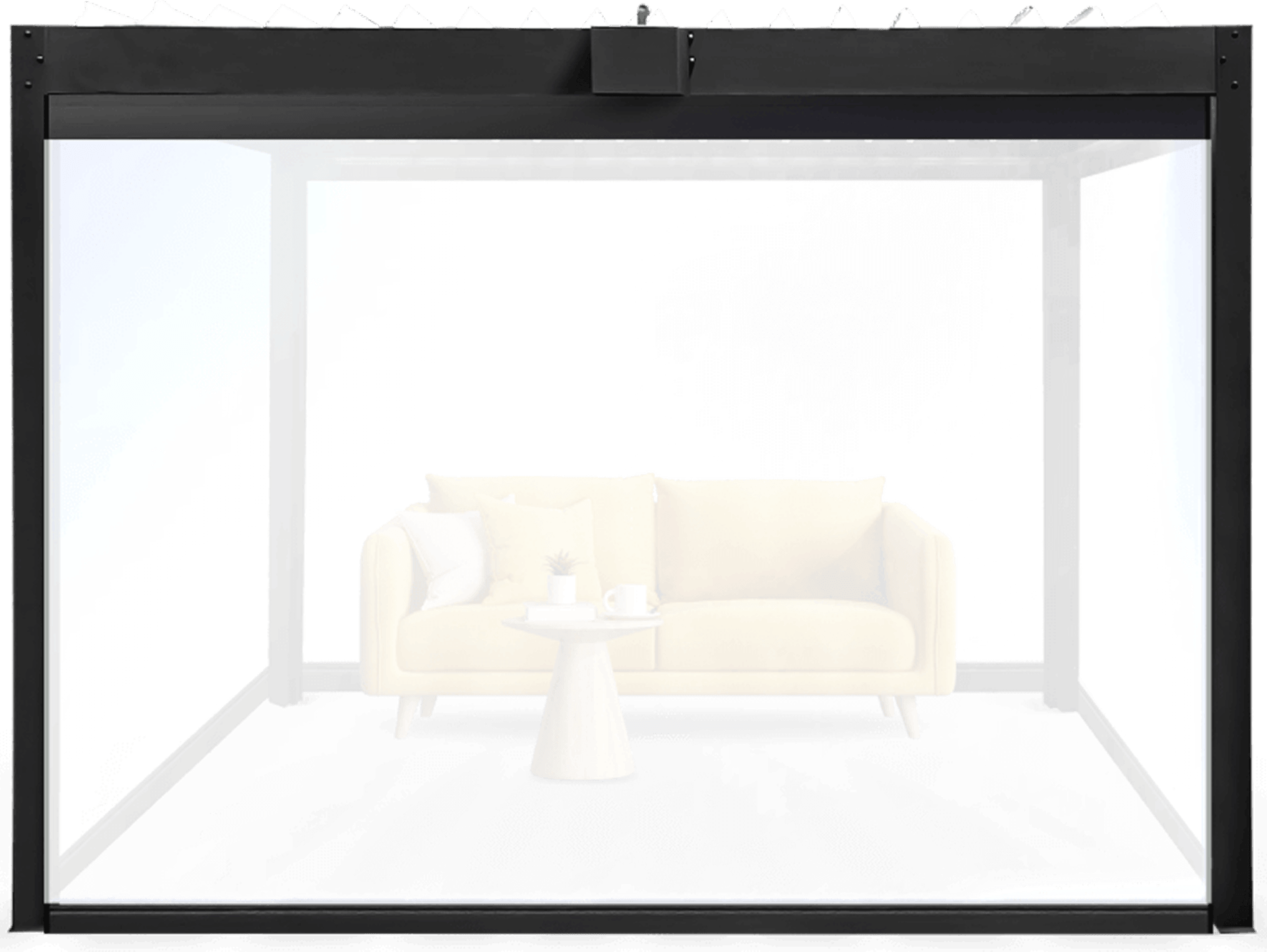

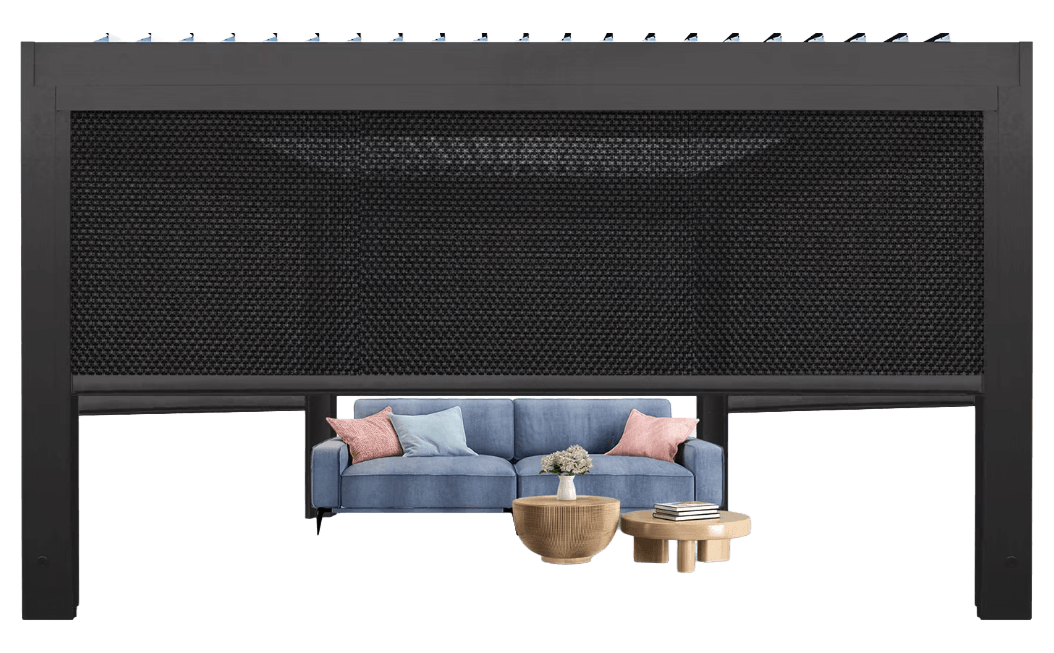

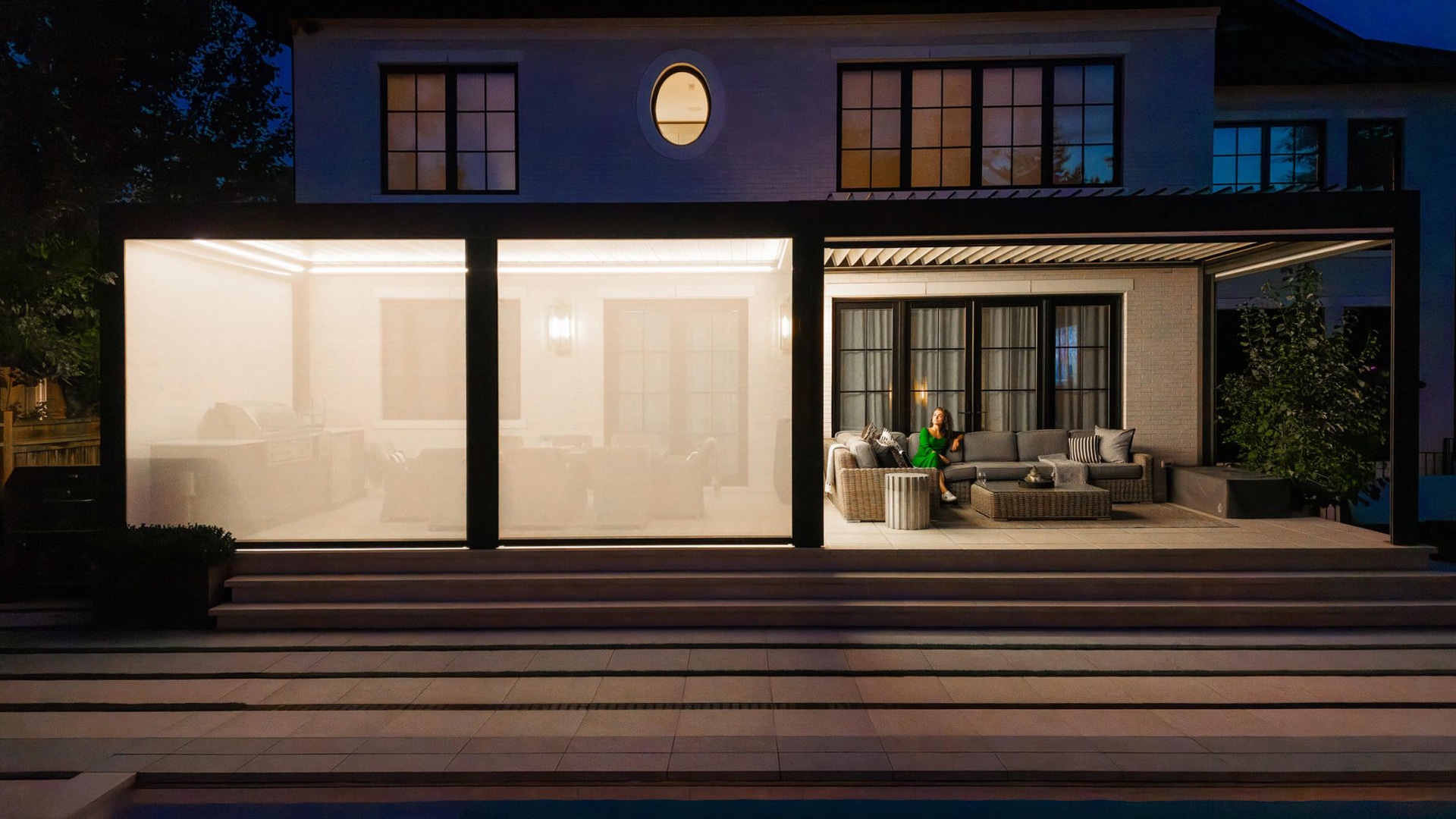

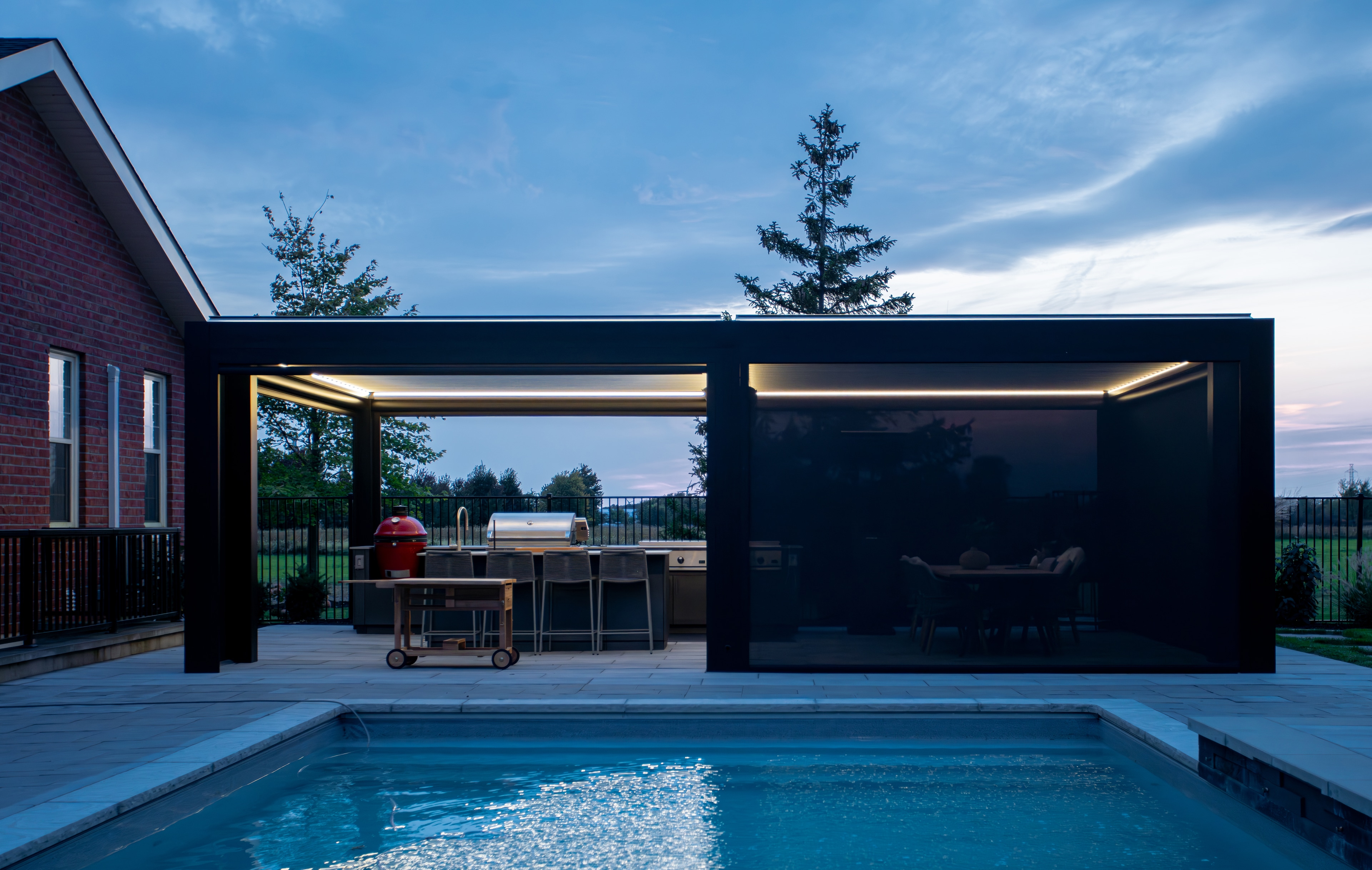

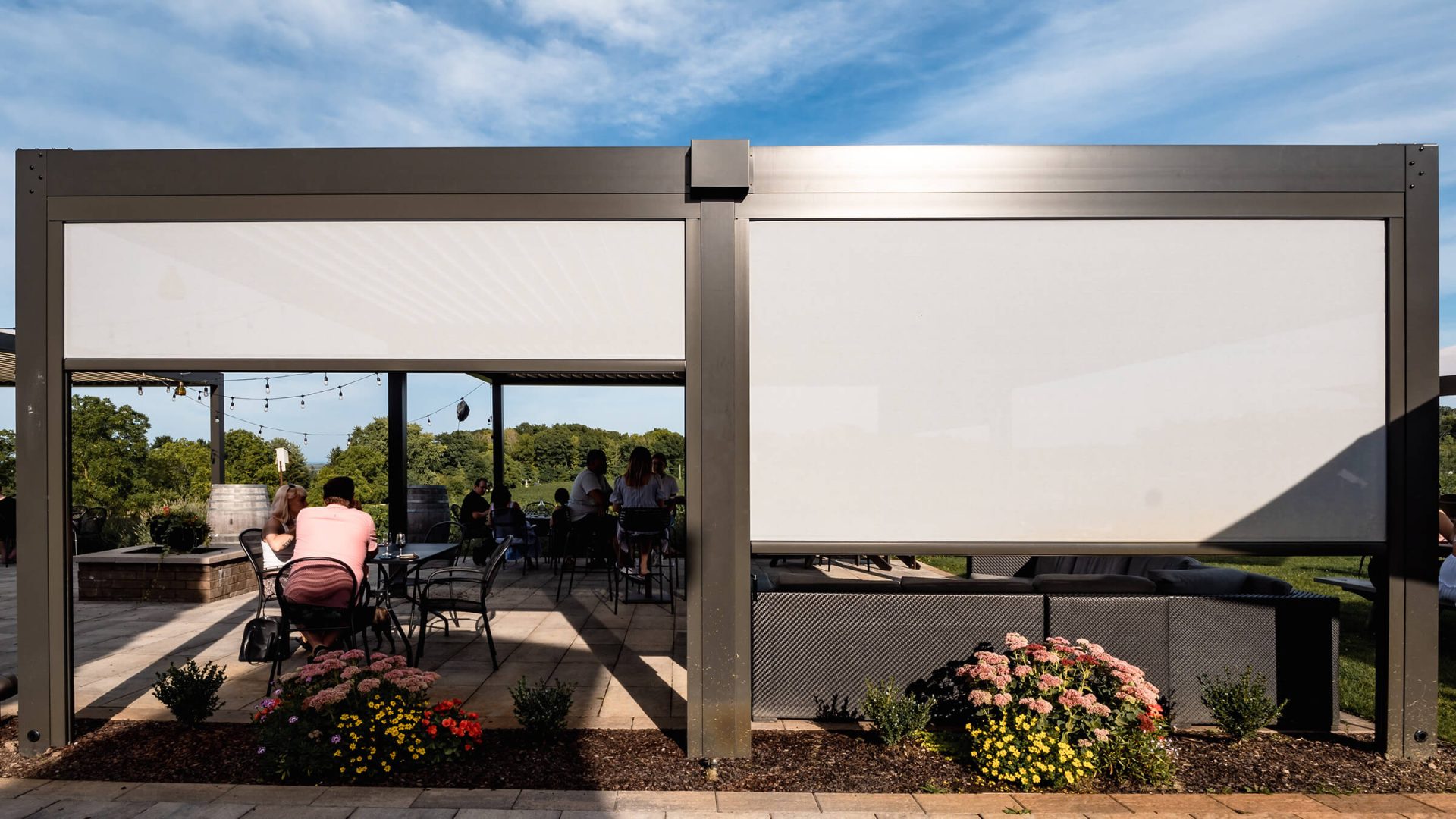

OPTIONAL FEATURE: MOTORIZED ZIP SCREEN

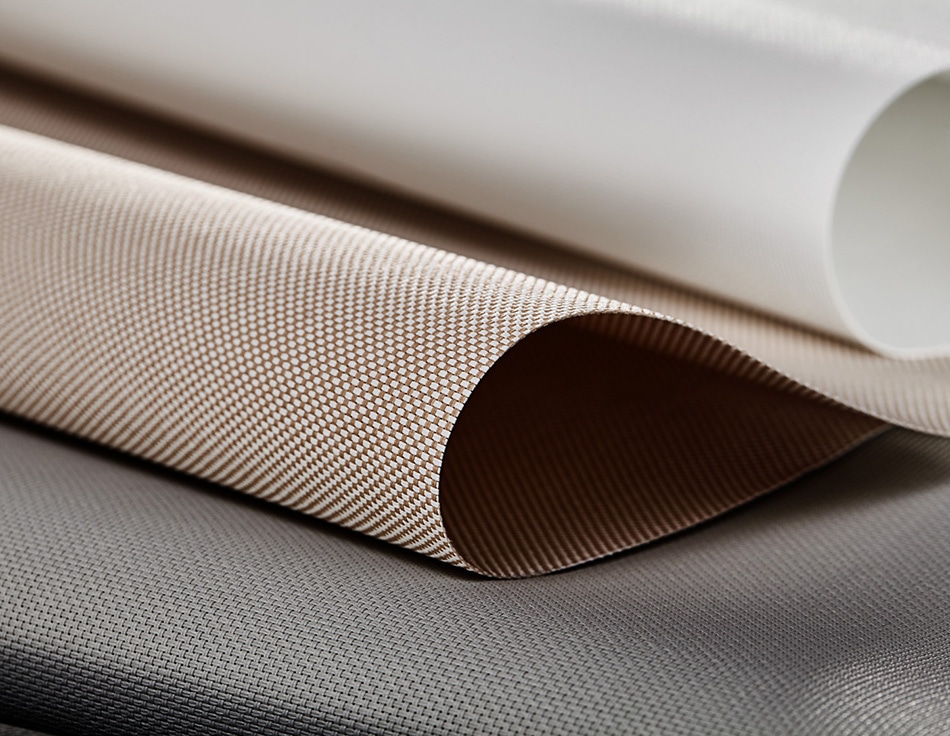

Zip screen sides offer the perfect balance between protection and visibility. Offered in 10% transparency for optimal control of sunlight, wind, rain, and light, they guarantee UV and heat protection in 5 fabric colors, tested for durability and functionality.

integratedGutterSystemFabricType
White

White

Beige

Beige

Grey

Grey

Bronze

Bronze

Black

Black

Integrated gutter pergola

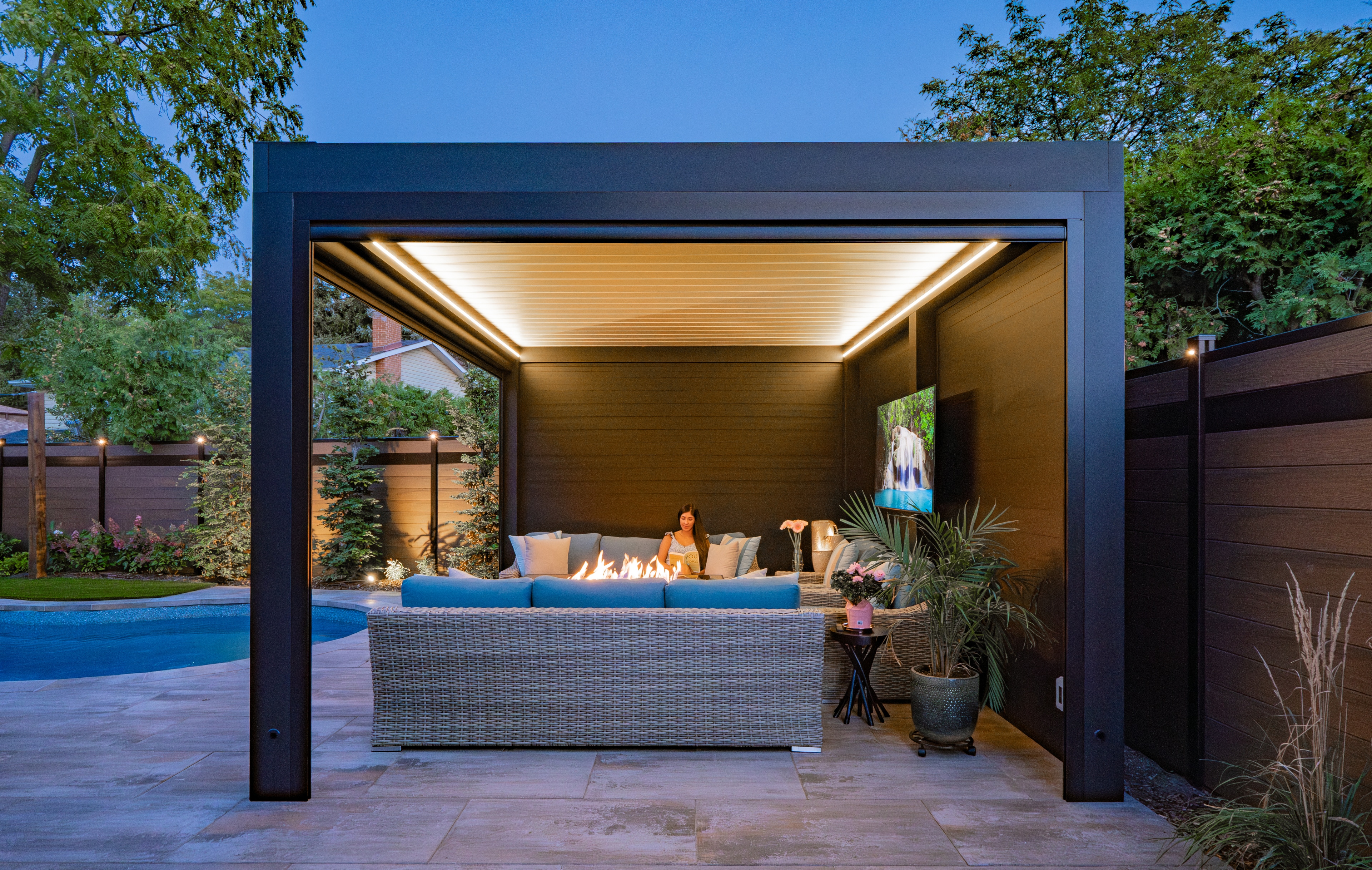

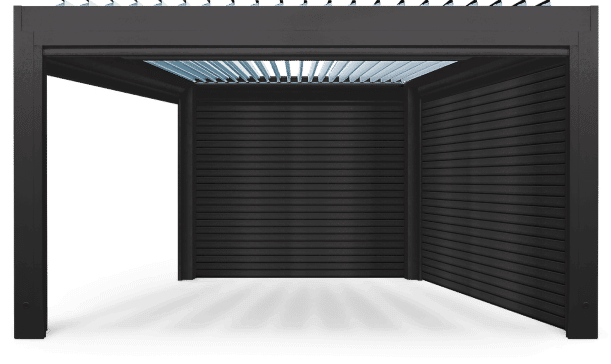

OPTIONAL FEATURE: SOLID ALUMINUM WALL

Aluminum solid walls provide shade, privacy, and weather protection to enhance your pergola experience. Available in a variety of colors, the solid aluminum wall provides a stable surface on which to mount a TV (not included).

Black

Umbra Gray

White

Integrated gutter pergola
Slide 1
Slide 2
Slide 3
Slide 4
Slide 5
Slide 6
Slide 7
Slide 8
Slide 9
Slide 10
Slide 11
Slide 12
Slide 13
Slide 14

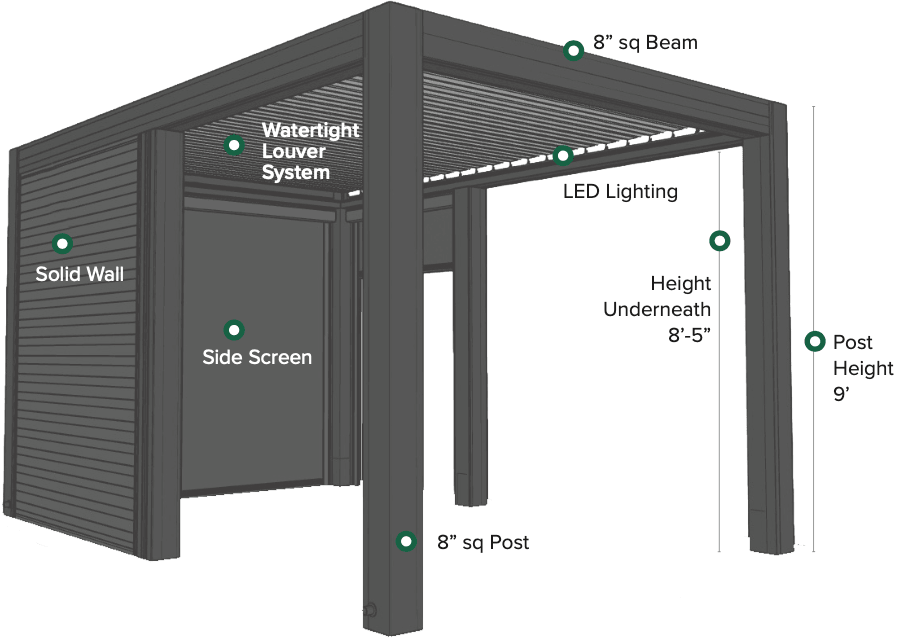

AMBIANCE ELITE TECHNICAL SPECIFICATIONS

Material

Premium quality extruded aluminum

Powder coated

Stainless steel louvered roof

Sizes:

Max size single bay with snow load: 12’ x 18’

Max size single bay no snow load: 15’ x 23’

Height (top of beam): 9’

Height (bottom of beam): 8’-5”

Posts: 8” sq

Weather Protection

Snow load rating (closed): 30 – 55 PSF

Wind rating (closed): 130 – 175 mph

Waterproof: Yes

Installation

Must be installed and fixed on top of a flat, solid surface for water drainage from post:

  • Concrete slab
  • Concrete footings (sonotubes)
  • Deck built of wood or composite

Pergola is anchored with anchor bolts.

Optional Features

Motorized louver system

Motorized zip screen

Solid Wall

LED Lighting

Fan Bar

Extra Post

Integrated LED Lightning

Aluminum parts/extrusions/structure10 yrs
Motorization powered by Somfy components: motor, power supply, receiver, electronic controls2 yrs
Zip Screen: frame and fabric5 yrs
LED Lighting2 yrs

Since 1933, Walpole Outdoors has earned a national reputation for quality and structural integrity through a commitment to our customers’ needs. When you invest in a Walpole Outdoors pergola, you can feel secure in the knowledge that it has been designed and handcrafted to the very highest standards.

Expert Installation When You Need It

We recommend professional installation for the Ambiance Elite pergola to ensure the highest level of fit and finish. The Ambiance Kit is designed for easy installation and comes with clear instructions.

Customers in our local service areas can rely on Walpole Outdoors’ certified crews—fully trained employees who follow our high standards for craftsmanship, care, and attention to detail every step of the way.

Expert Installation

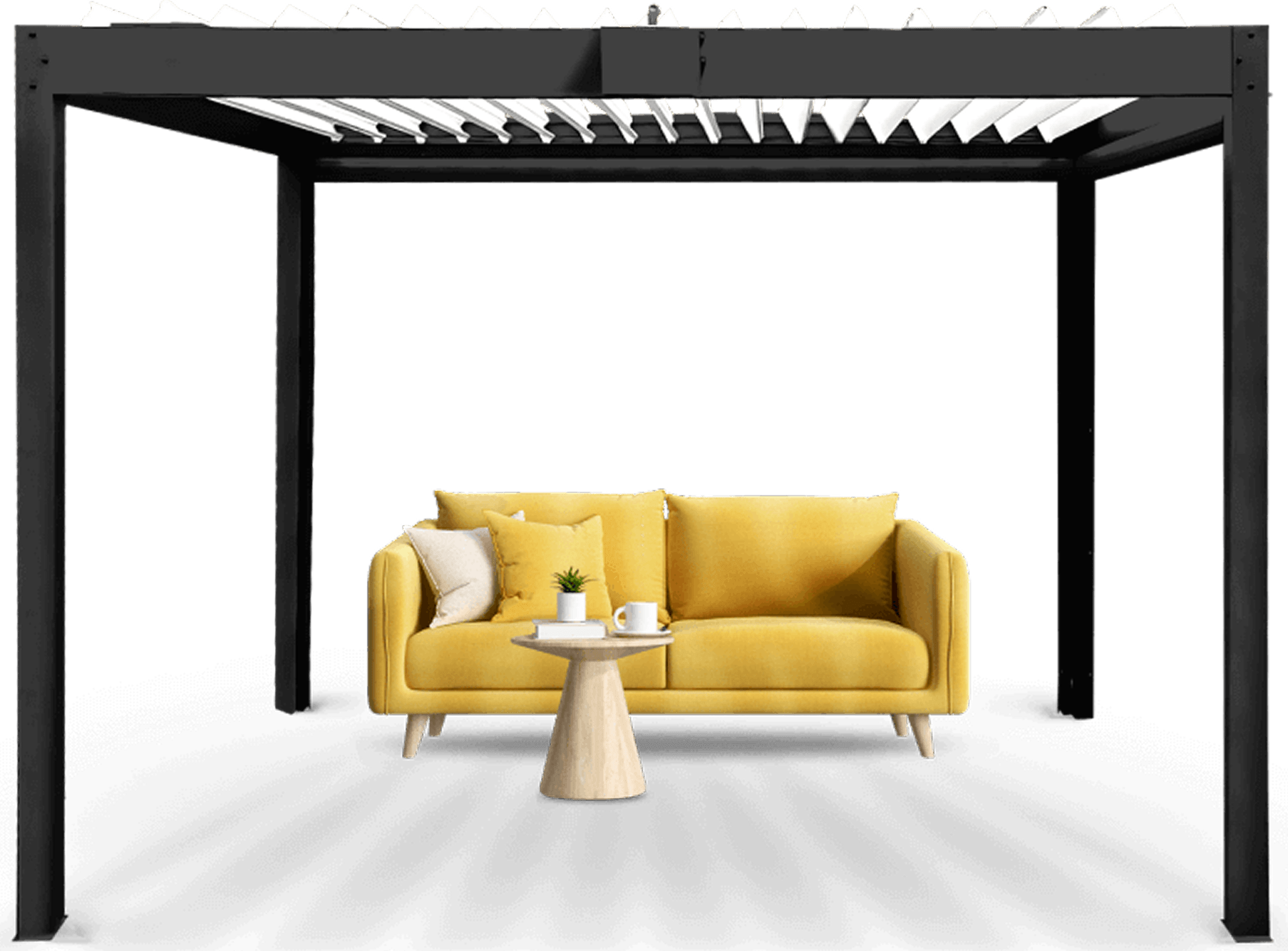

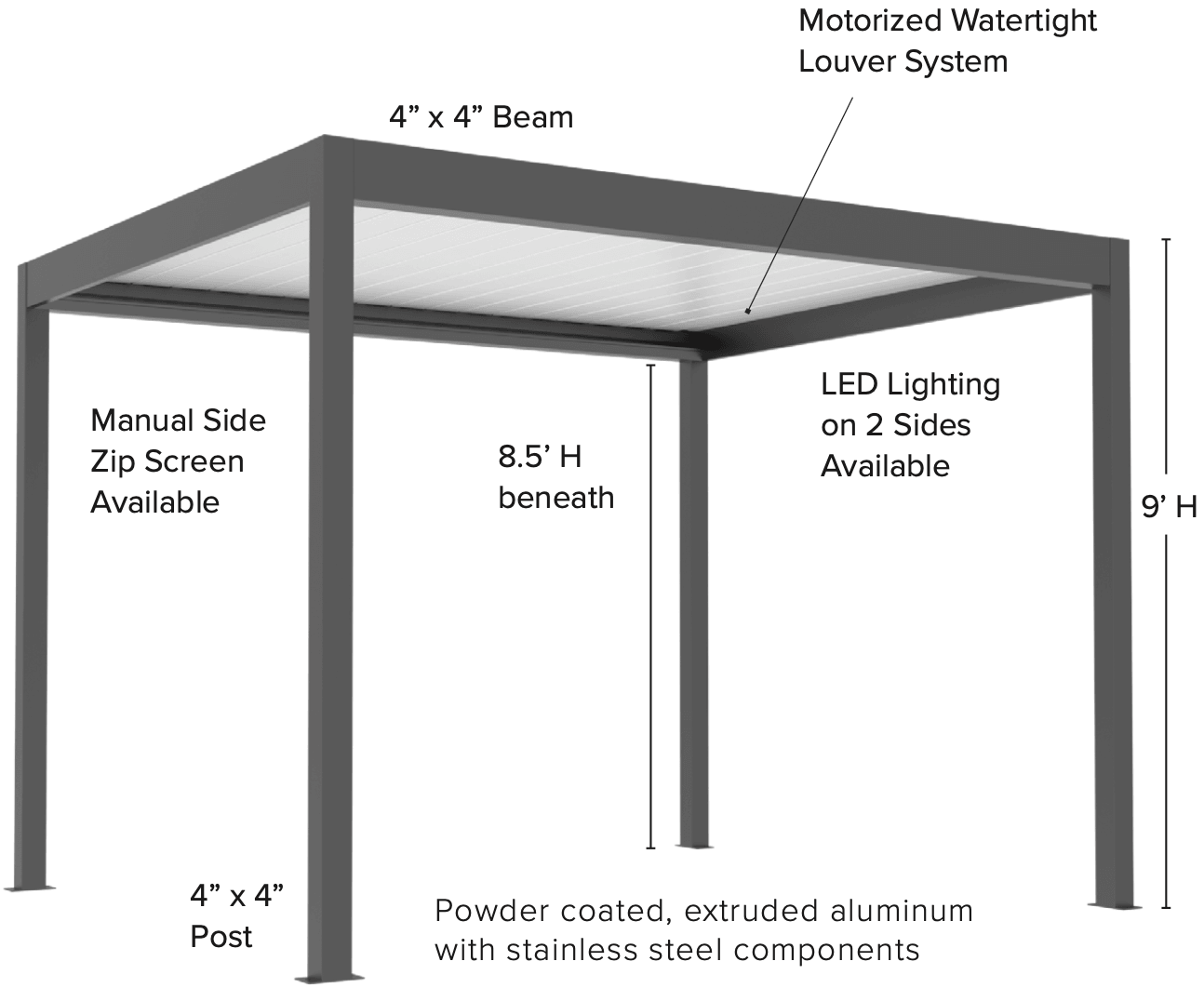

Ambiance Kit

Ambiance Kit Image

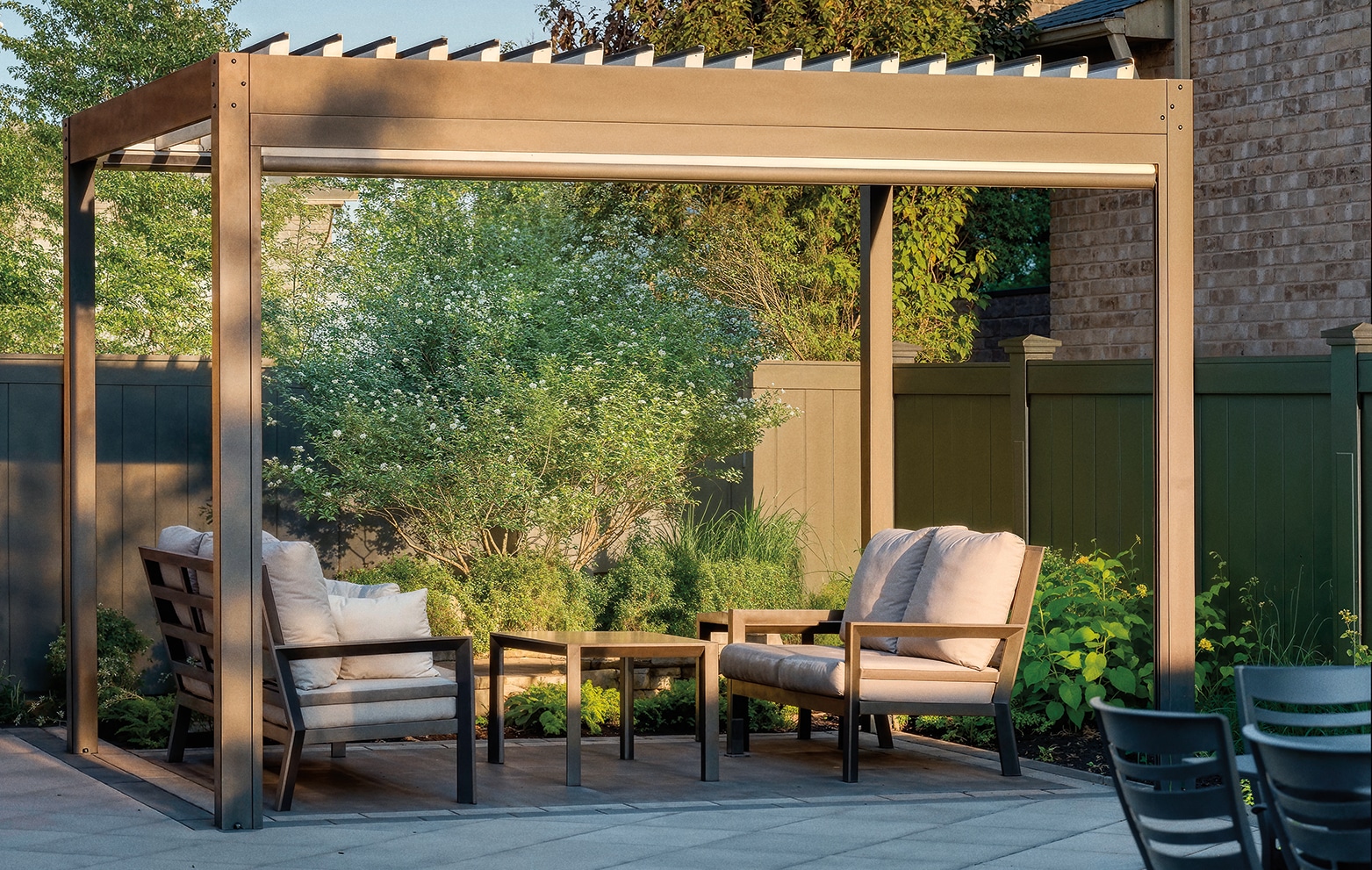

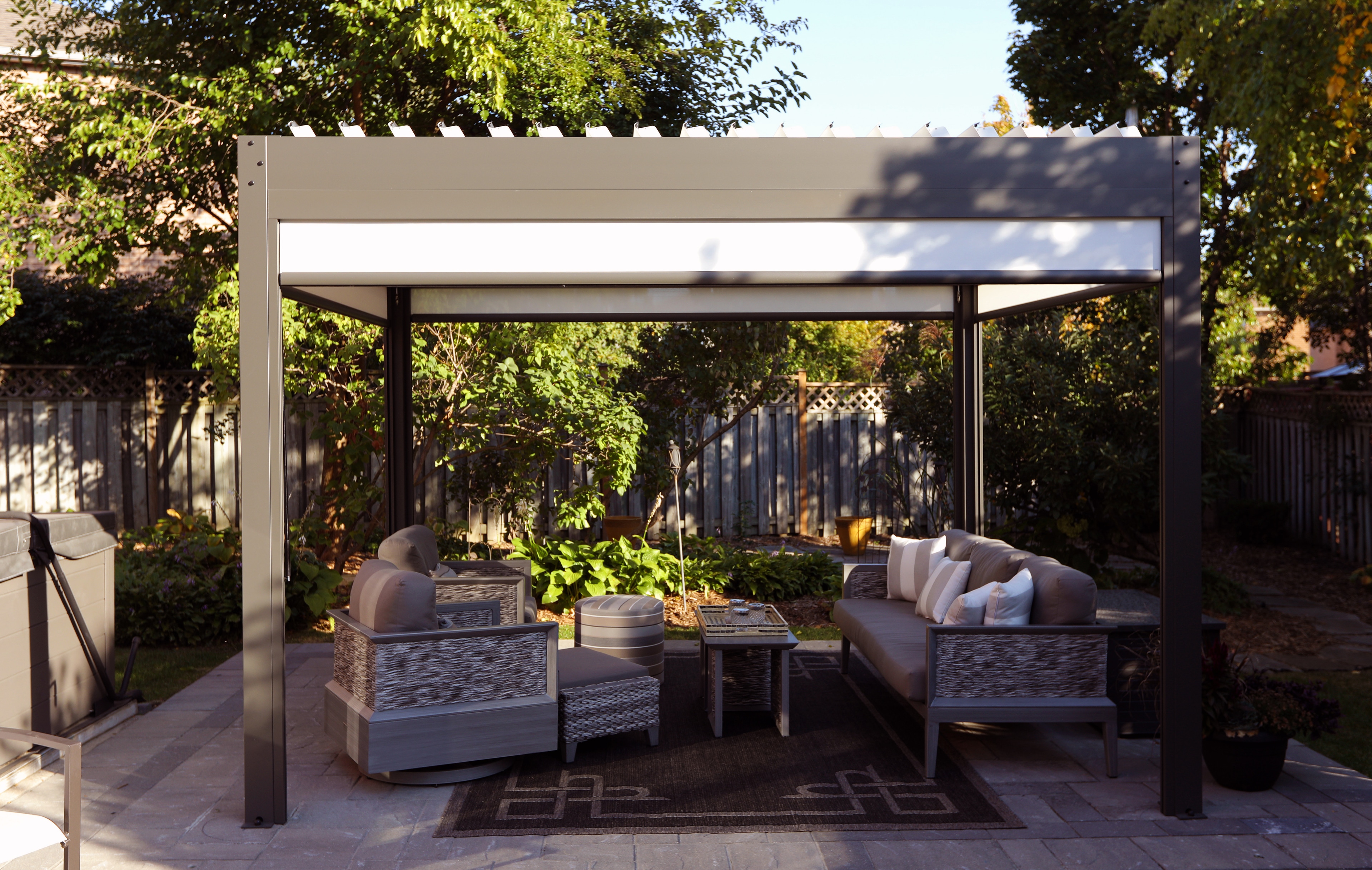

For a modern look in smaller spaces, the Ambiance Kit Pergola is available with the same louver system technology as the Ambiance Elite. Offered in two ready- to-install sizes of 10’x10’ and 10’x12’, its compact design features 4”x4” posts and beams, making it ideal for intimate spaces. The Ambiance Kit comes standard with motorized louvers.

Starting at $16,560 (10’ x 10’)

A water-tight louver system, in conjunction with the integrated gutter system, keeps you dry during the heaviest of rainstorms.

Ambiance Kit Crop Image

Double Layer Louver

The Ambiance Kit is available with an Umbra Gray frame and white louvers.

Umbra Gray

White

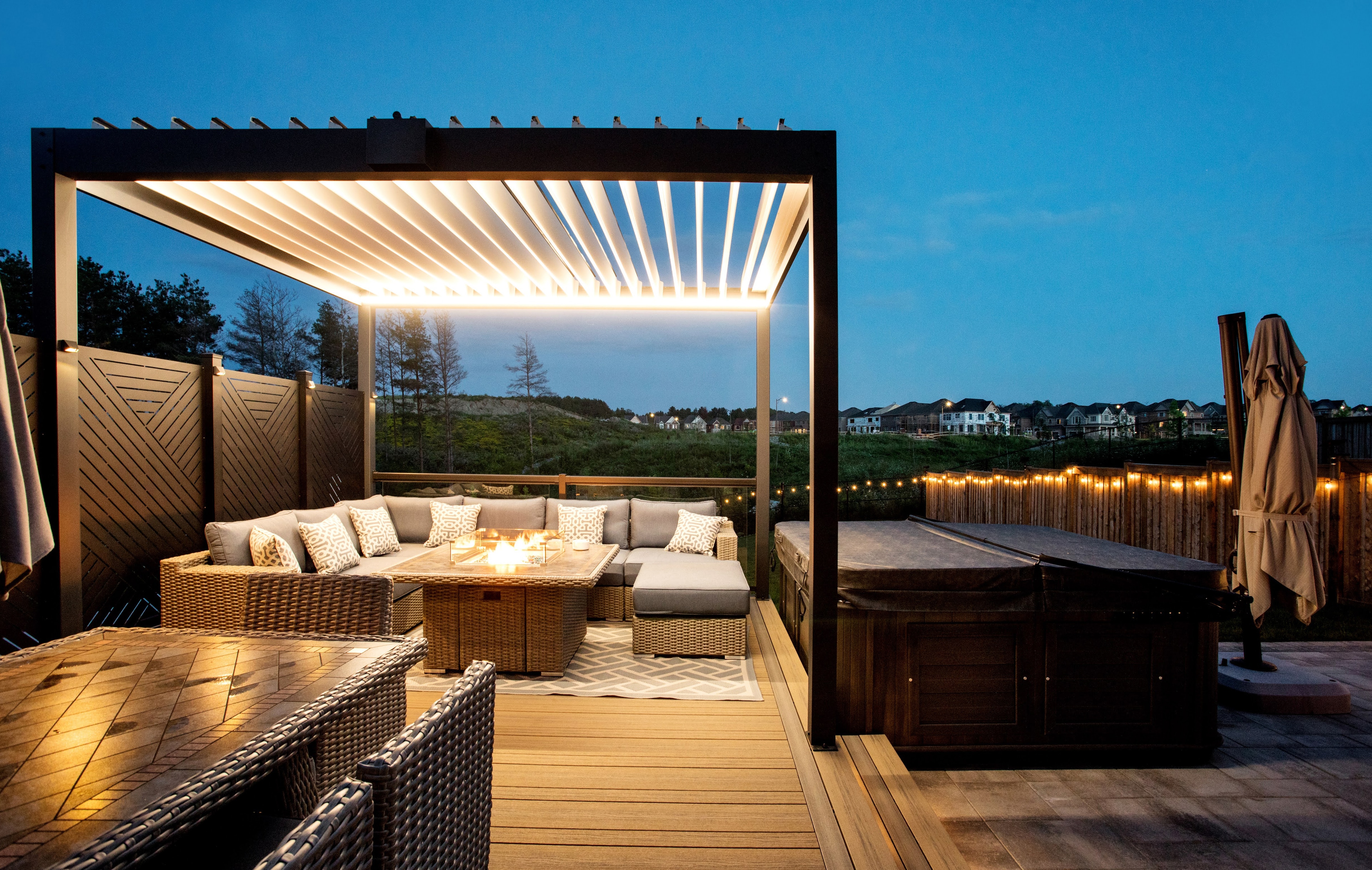

OPTIONAL FEATURE: LED LIGHTS

LED Lights—on two sides of the bay—seamlessly integrate into the design, providing ideal lighting without additional luminaries. Brightness levels can be adjusted with precision using a simple, intuitive remote control.

LED Light Kit Image

OPTIONAL FEATURE: SIDE ZIP SCREEN

Manual side screens offer the perfect balance between protection and visibility. These manual zip screens—offered in white—provide for optimal control of sunlight, wind, rain, and light, and they guarantee UV and heat protection.

Side Zip Screen Image
Slide 1
Slide 2
Slide 3
Slide 4
Slide 5
Slide 6

AMBIANCE KIT TECHNICAL SPECIFICATIONS

Material

Premium quality extruded aluminum

Powder coated

Stainless steel louvered roof

Sizes:

Max size single bay with snow load: 10’ x 12’

Max size single bay no snow load: 10’ x 12’

Height (top of beam): 9’

Height (bottom of beam): 8’-5”

Posts: 4” sq

Weather Protection

Snow load rating (closed): 50 PSF

Wind rating (closed): 160 mph +

Waterproof: Yes

Installation

Must be installed and fixed on top of a flat, solid surface for water drainage from post:

  • Concrete slab
  • Concrete footings (sonotubes)
  • Deck built of wood or composite

Pergola is anchored with anchor bolts.

Features

Motorized louver system - standard

Manual zip screen - optional

LED Lighting (2 sides) - optional

Integrated LED Lightning

Aluminum parts/extrusions/structure10 yrs
Zip Screen: frame and fabric5 yrs
LED Lighting2 yrs

Since 1933, Walpole Outdoors has earned a national reputation for quality and structural integrity through a commitment to our customers’ needs. When you invest in a Walpole Outdoors pergola, you can feel secure in the knowledge that it has been designed and handcrafted to the very highest standards.
