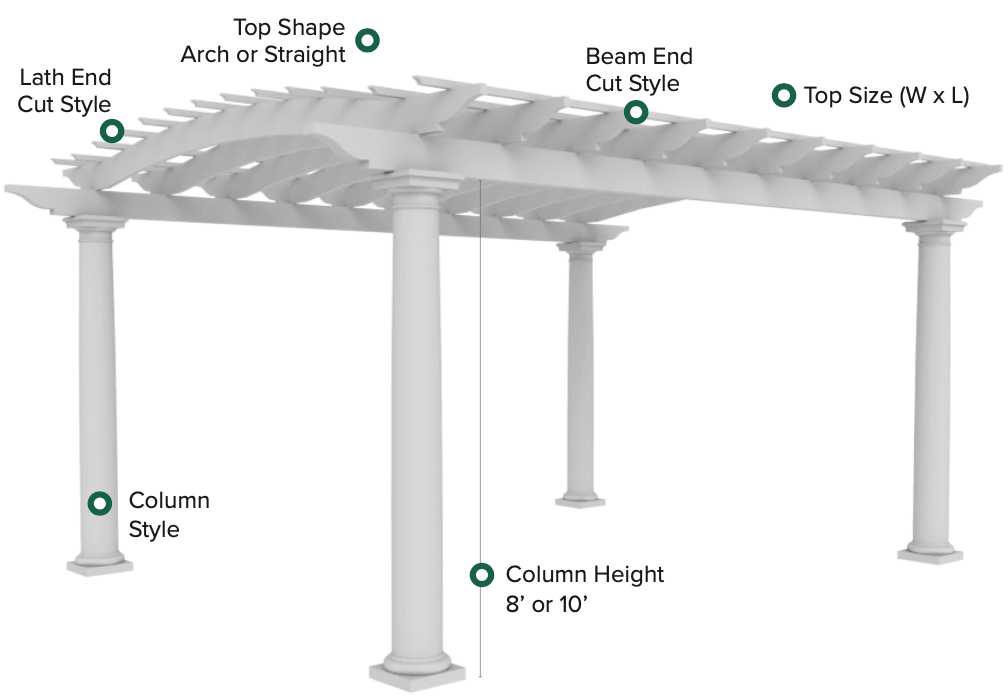

Designing Your Freestanding Pergola

The freestanding pergola is available in a variety of sizes with customizable design options for top, column, beam and lath end cut styles—as well as add-on features like shade canopies and side screens.

SIZE AND SHAPE

Freestanding pergolas are available with either Arch or Straight tops and are offered in various size combinations with widths ranging from 8’ to 15.5’ and lengths ranging from 10’ to 15.5’.

Straight

Starting at $13,695

(8’W x 10’L)

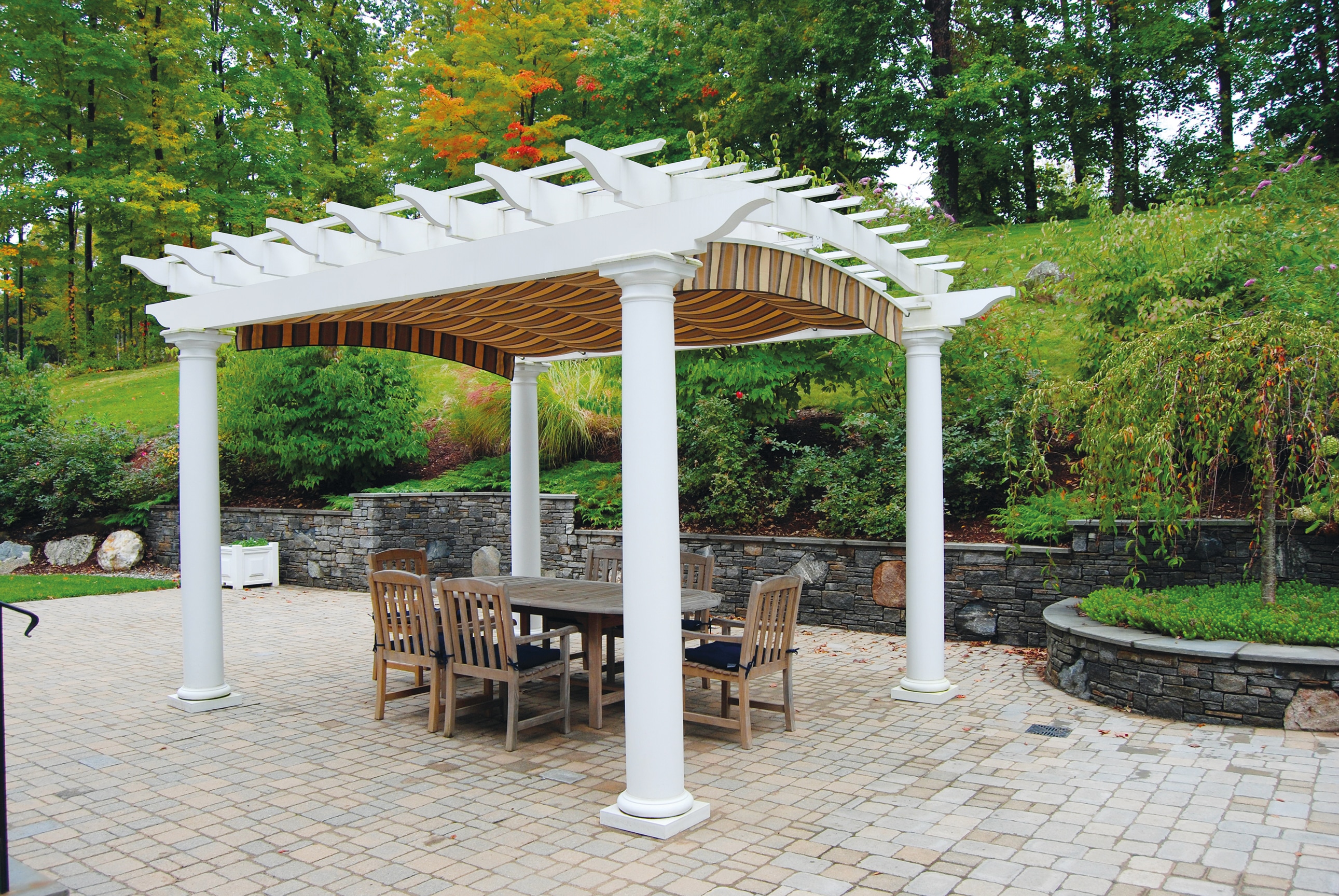

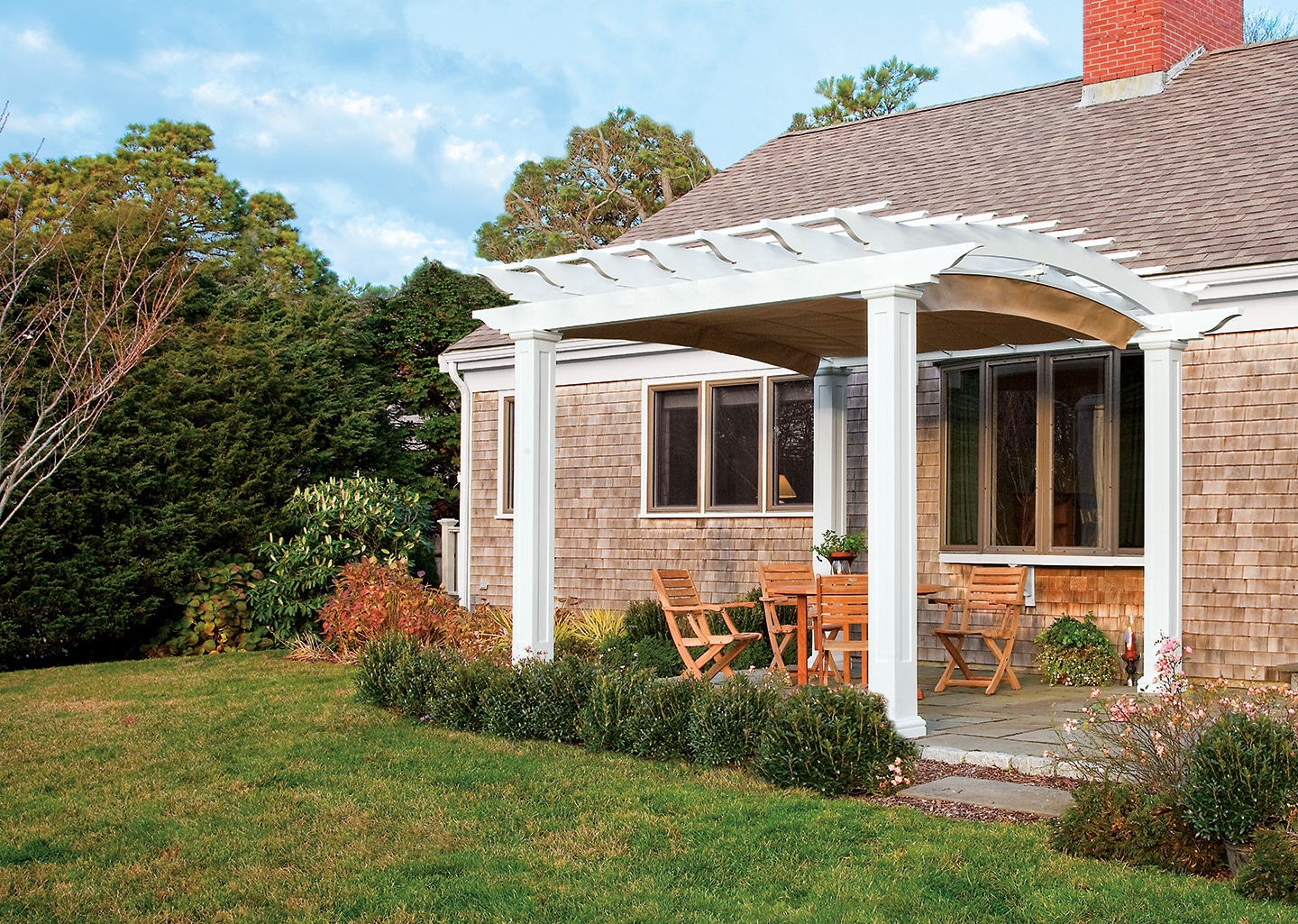

Arch

Starting at $15,835

(10’W x 10’L)

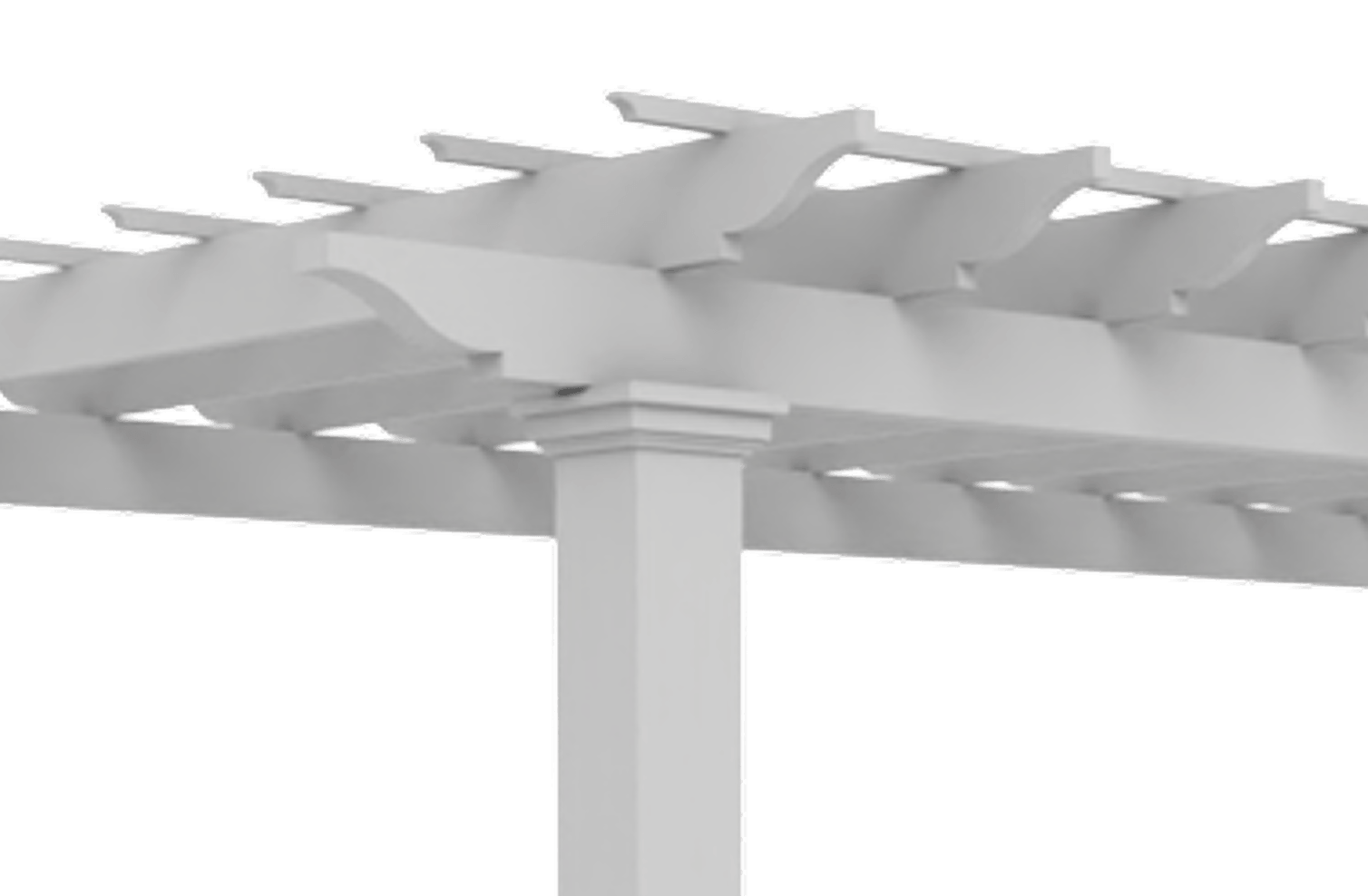

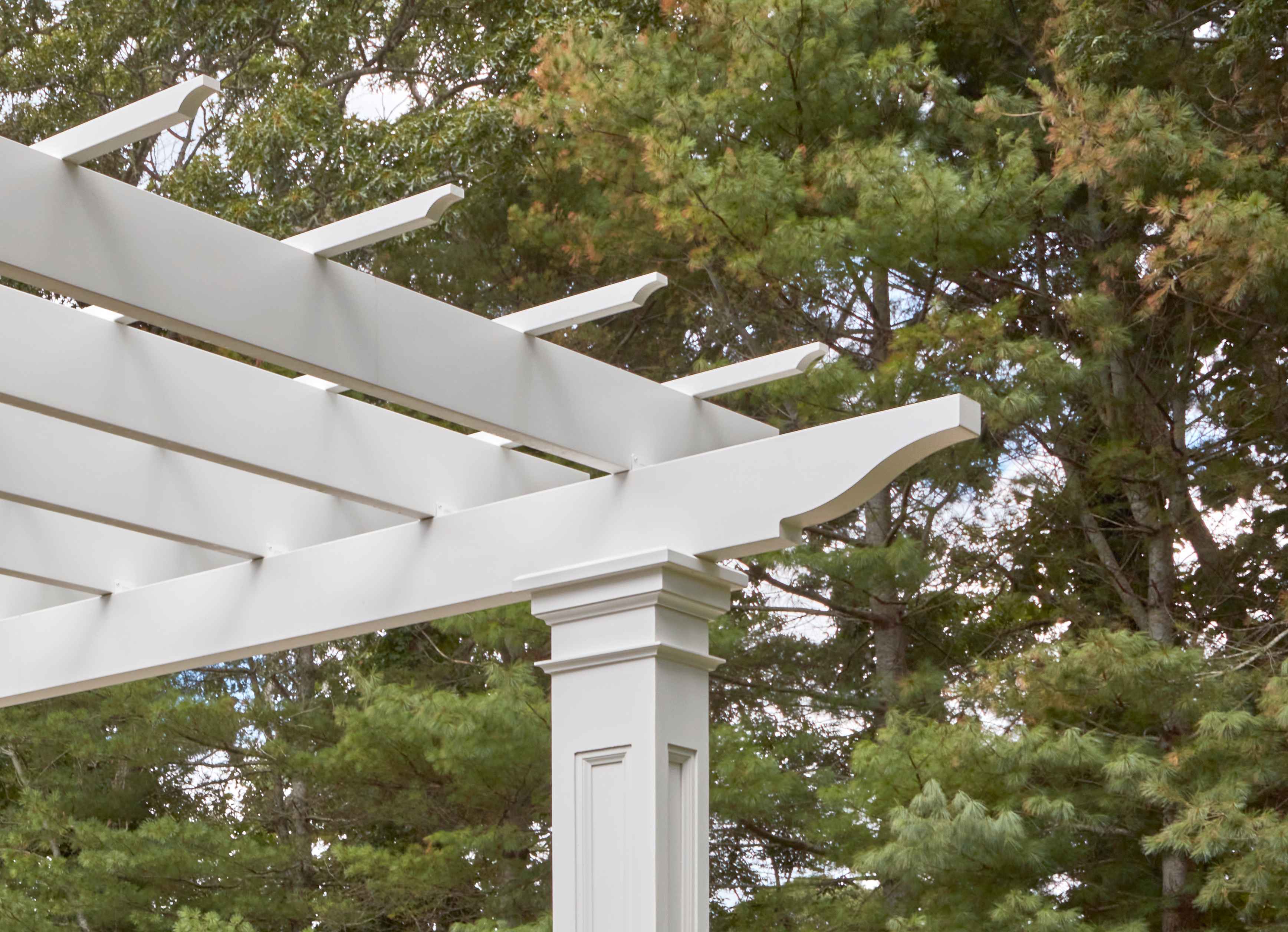

End Cut Styles

Further personalize your design by customizing the beam and joist end cuts.

Ogee
Diagonal
Flat
Cove
Marston

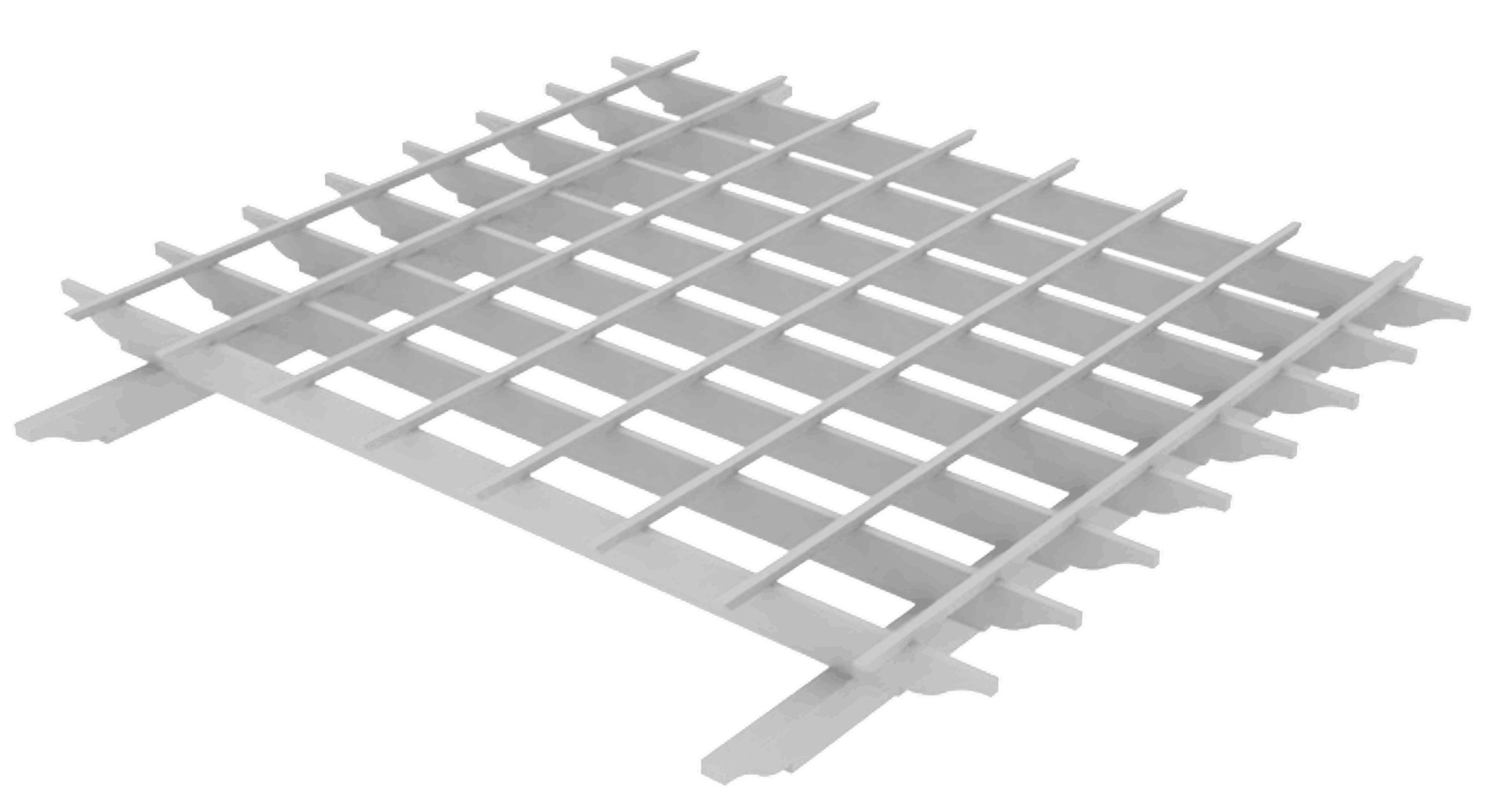

The lath end cut style can also be selected from among three options.

Cove
Diagonal
Straight

FACTORY FINISHED IN WHITE - WITH COLOR OPTIONS TO SUIT YOUR STYLE

Pergolas arrive pre-finished in classic white. Prefer something different? Choose from our signature paint colors or request a custom color match for a personalized touch.

White

Functional Gray

Iron Ore

Woodspice

Verde Green

Shade that works as beautifully as it looks

Enhance your pergola with smart, stylish upgrades that add comfort and functionality—perfect for enjoying your outdoor space even more.

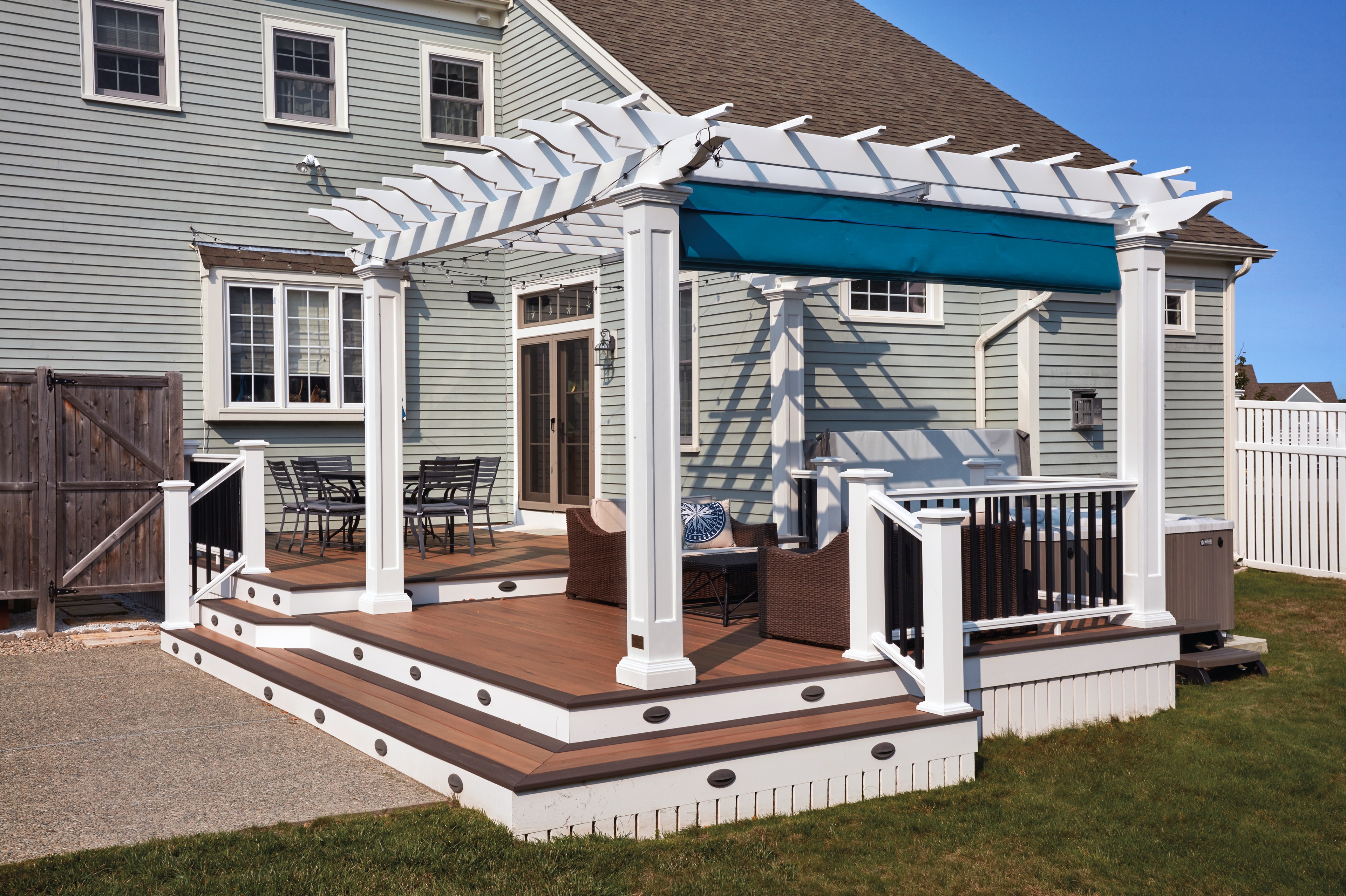

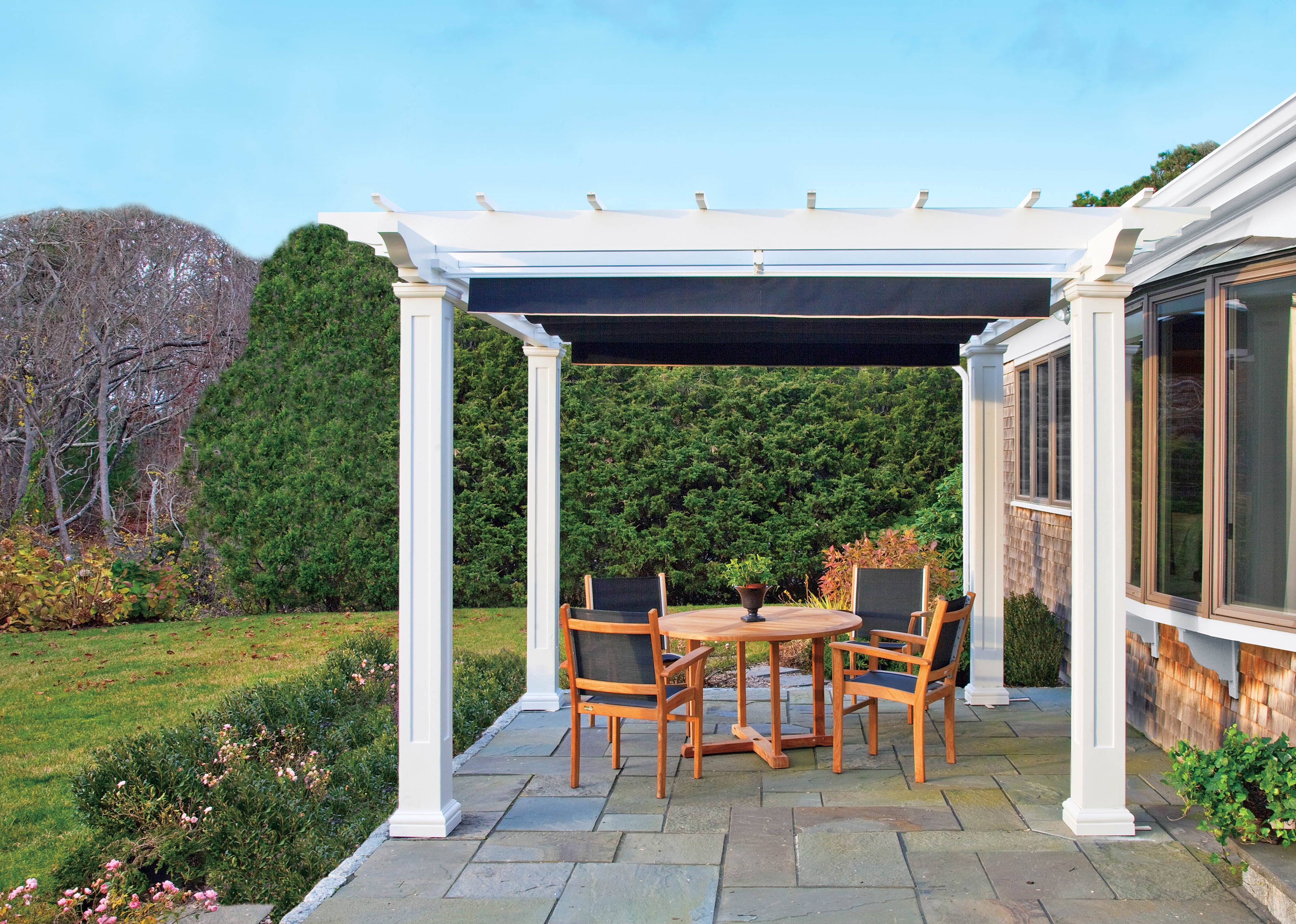

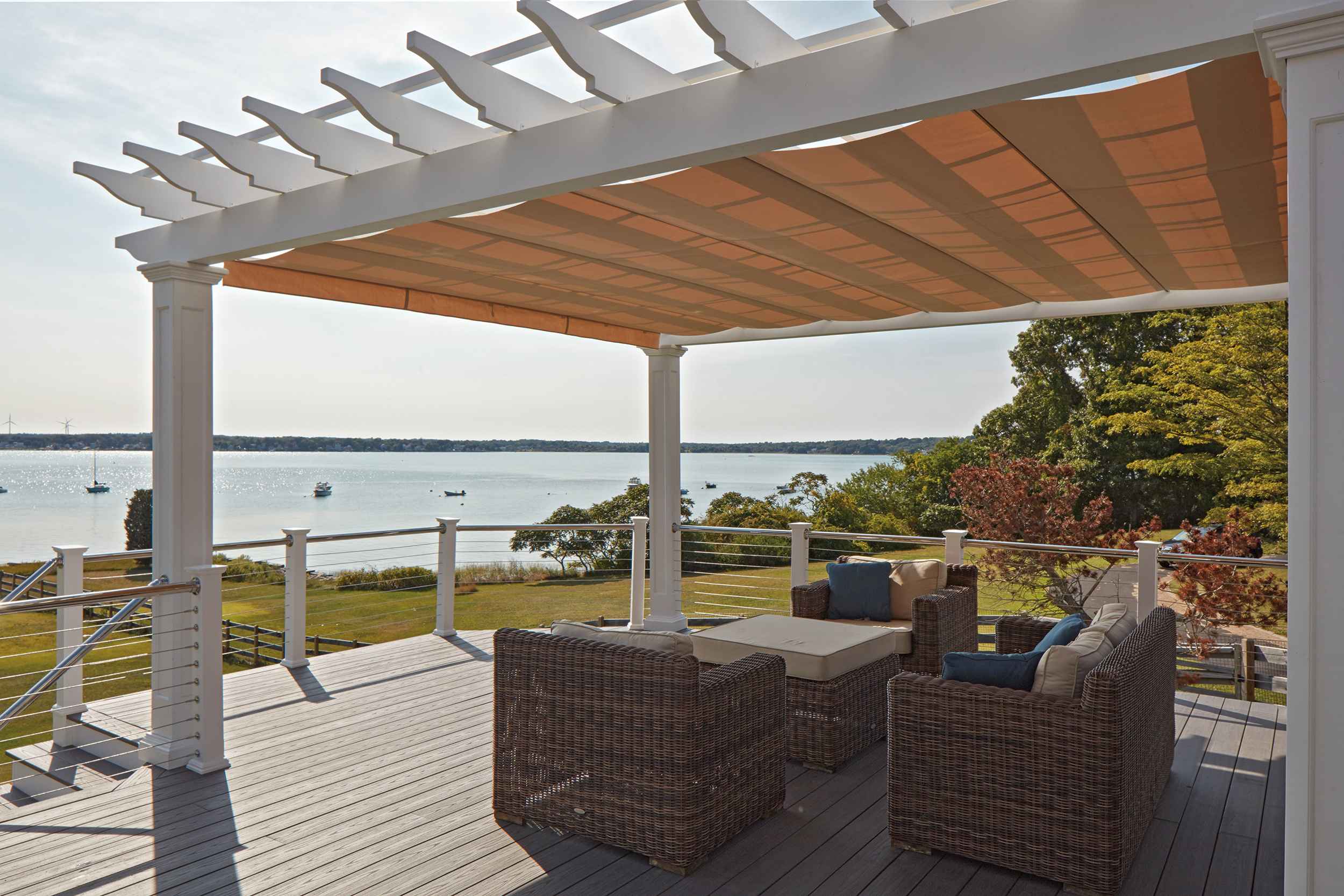

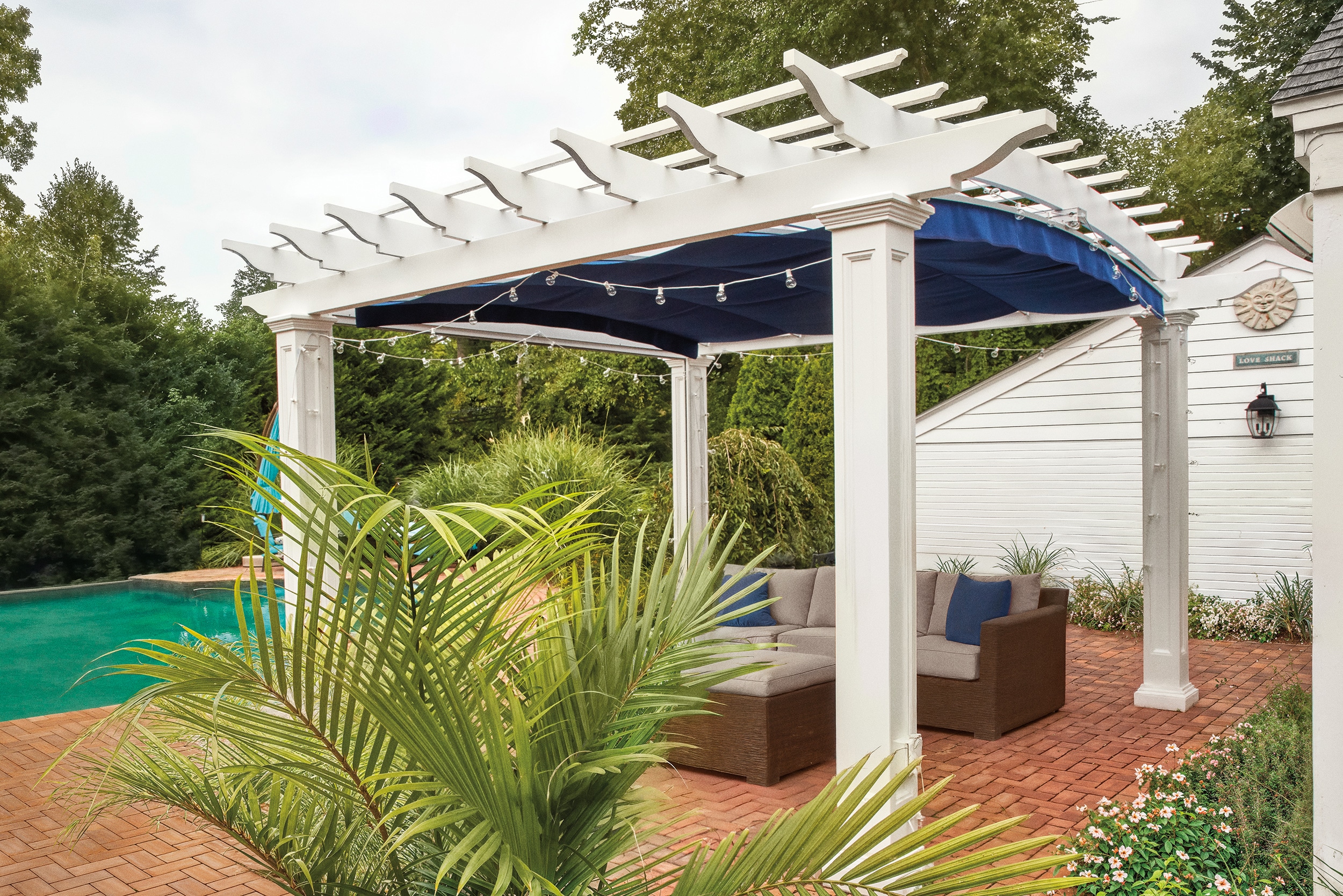

Underside Shade Canopy

Sunbrella rain-resistant fabric is available in over 140 beautiful solids and stripes and 13 Harbor-Time waterproof fabrics. Manual and motorized (straight top only) canopies are available.

Side Screen

Retractable screens provide an elegant and reliable motorized side shade for pergolas. Available in widths of 10’, 12’, 14’, and 16’. Can be used with underside canopy.

Freestanding Pergola Technical Specifications

Size

Plain Column: 8” sq or 10” sq

8’H or 10’H

Paneled Column: 8” sq or 10” sq

8’H or 10’H

Round Column: 10” diameter

8’H or 10’H

Top: Measured on-center of posts

8’W × 10’L*
8’W × 12’L*
8’W × 14’L*
8’W × 15.5’L*
10’W × 10’L
10’W × 12’L
10’W × 14’L
10’W × 15.5’L

12’W × 12’L
12’W × 14’L
12’W × 15.5’L
14’W × 14’L
14’W × 15.5’L
15.5’W × 15.5’L*

* Straight Top only

Custom sizes available.

Beams: 3.5” × 7.25” (nominal 4×8)

Laths: 1.5” sq (nominal 2×2)

Rafters: 1.5” × 7.25” reinforced with structural aluminum

Material

Solid Cellular Vinyl

Optional Features

Underside Shade Canopy
Manual: Straight Top and Arch Top
Motorized: Straight Top only
Side Screen (manual or motorized)

Footing Requirements

Installation in soil—dig holes, set with concrete
Installation on solid walls—core drill holes for columns, set with mortar or concrete
Installation on pads or patios—core drill or cut holes, set with concrete
Installation on decks—varies by deck height

For customers within our services areas, Walpole Outdoors offers professional installation from our certified crews.

Warranty Information

25-year limited product warranty covers products exhibiting splitting, cracking, extruded skin peeling, abnormal discoloration, rot, termite attack, and/or general decay caused by or a result from the manufacture of defective material.

View the comprehensive Product Warranty.

Since 1933, Walpole Outdoors has earned a national reputation for quality and structural integrity through a commitment to our customers’ needs. When you invest in a Walpole Outdoors pergola, you can feel secure in the knowledge that it has been designed and handcrafted to the very highest standards.

Plain

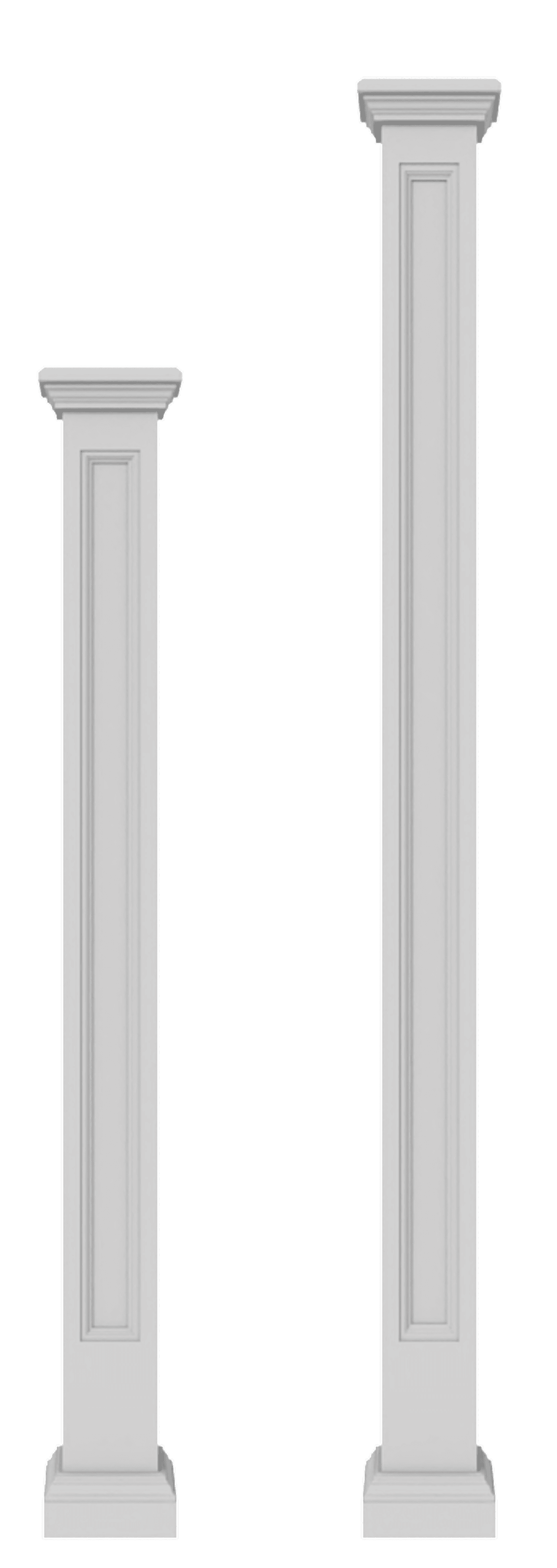

Paneled

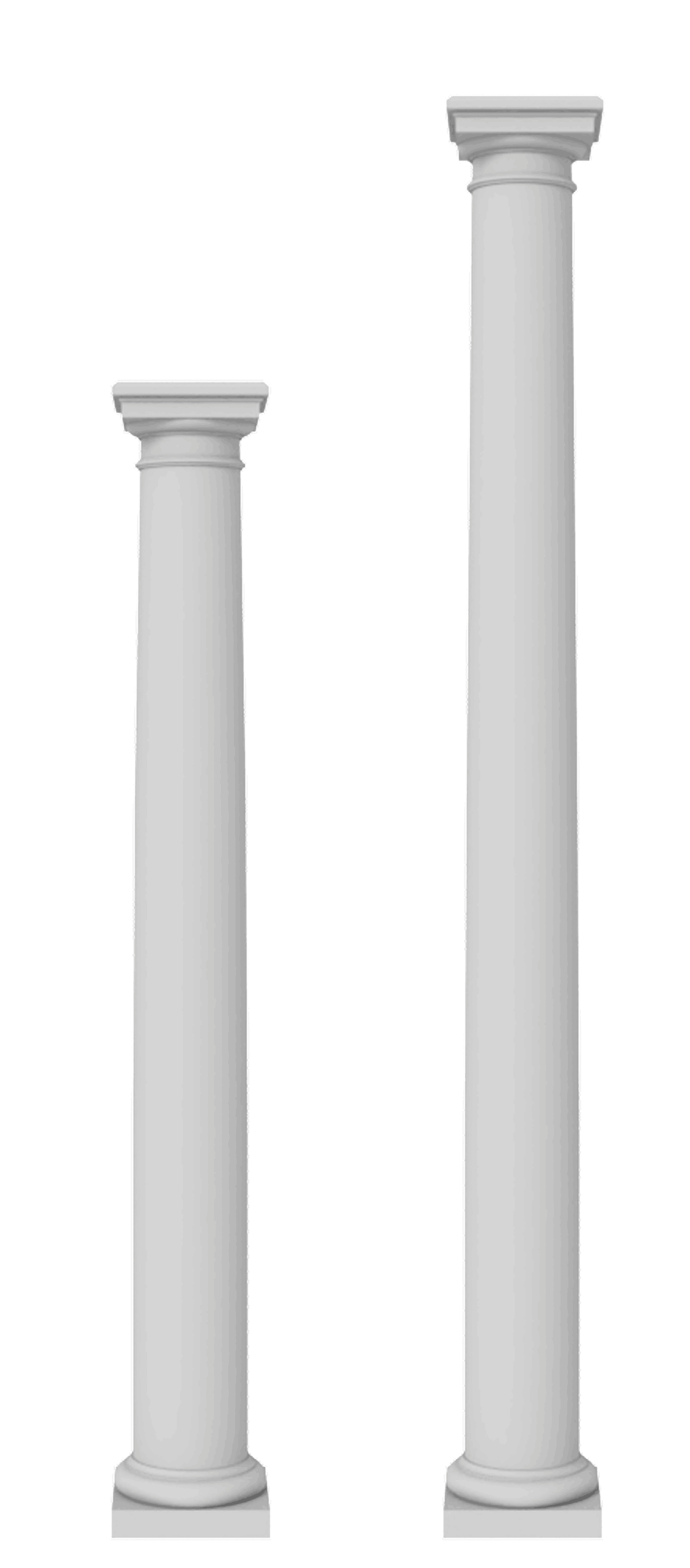

Round Tapered

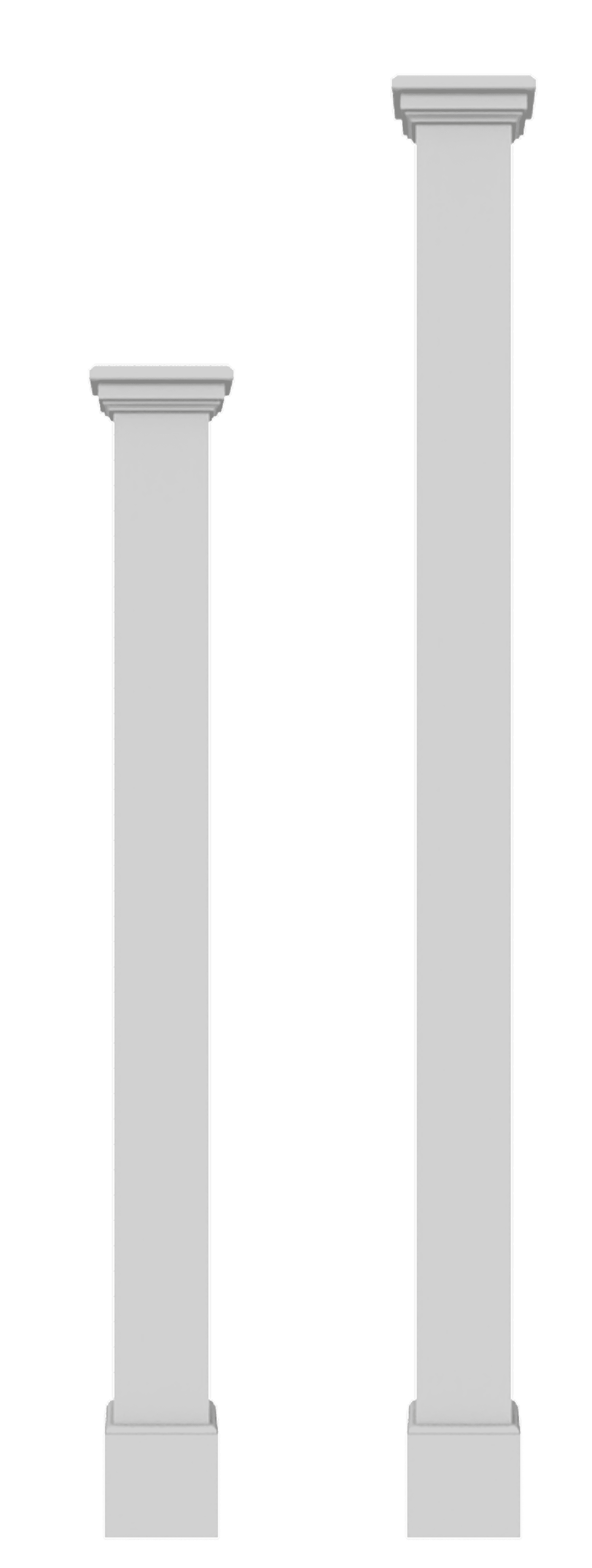

Column Style

End Cut Styles

Crafted from Premium Materials

FACTORY FINISHED IN WHITE - WITH COLOR OPTIONS TO SUIT YOUR STYLE
