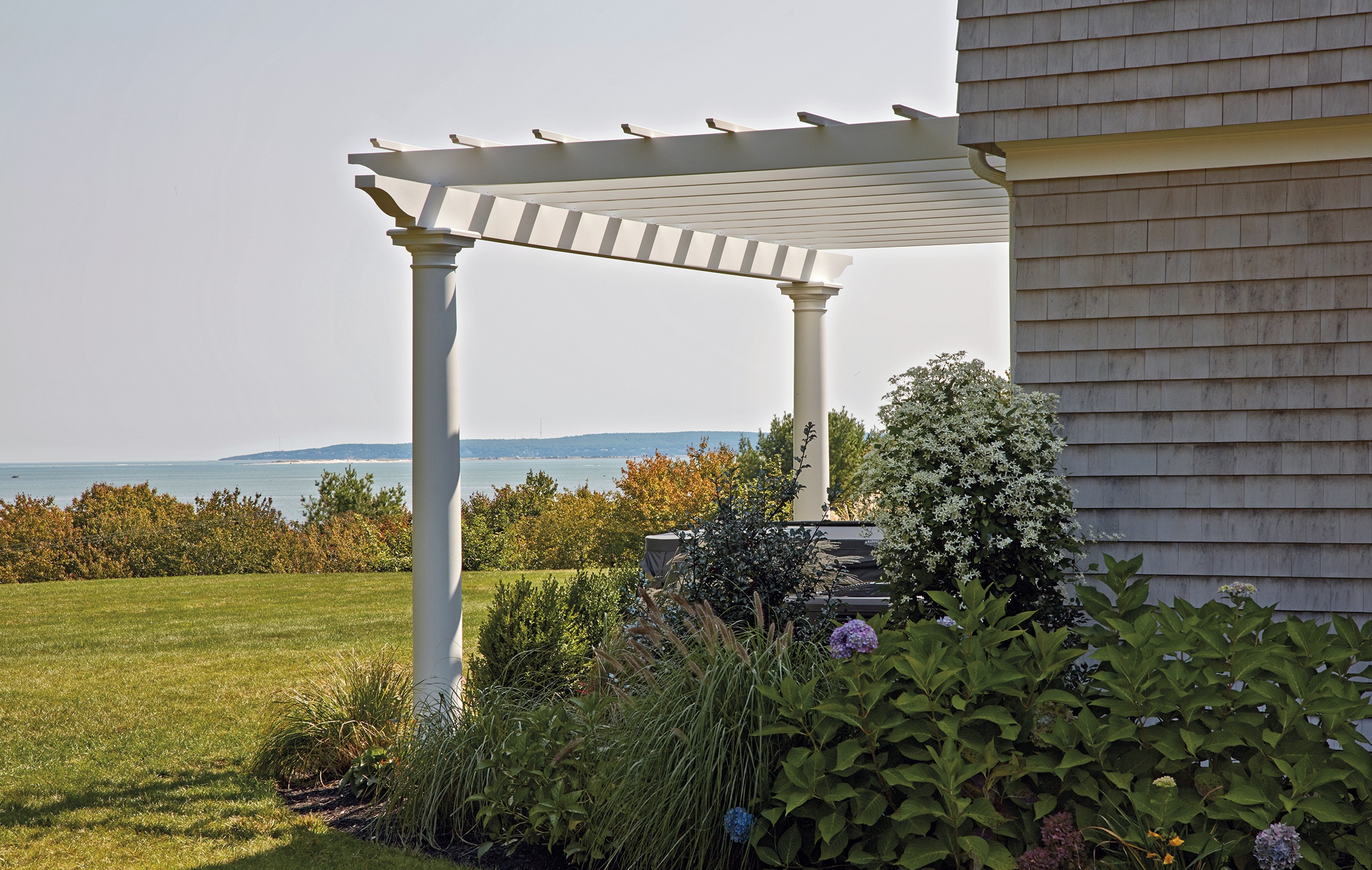

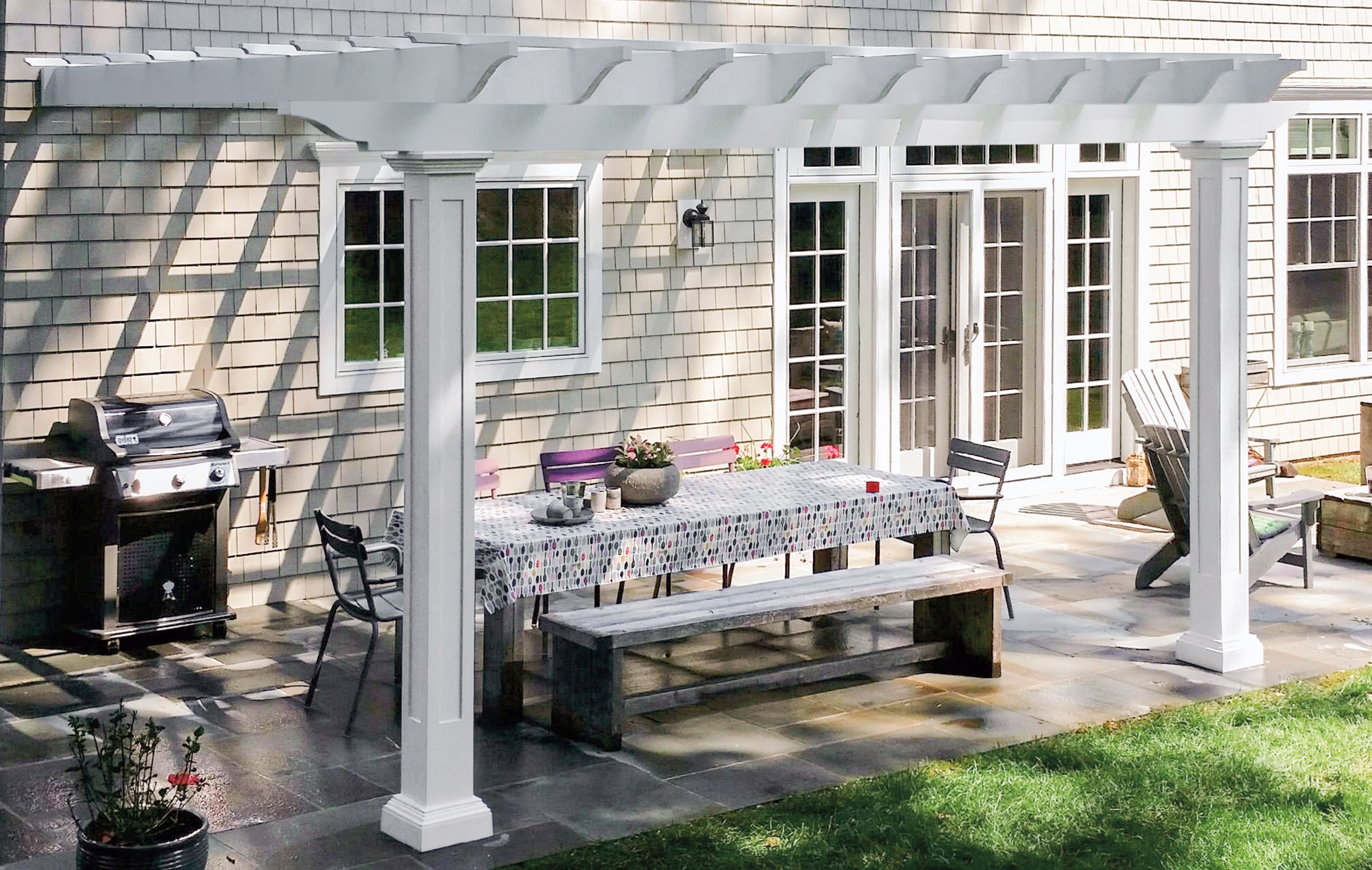

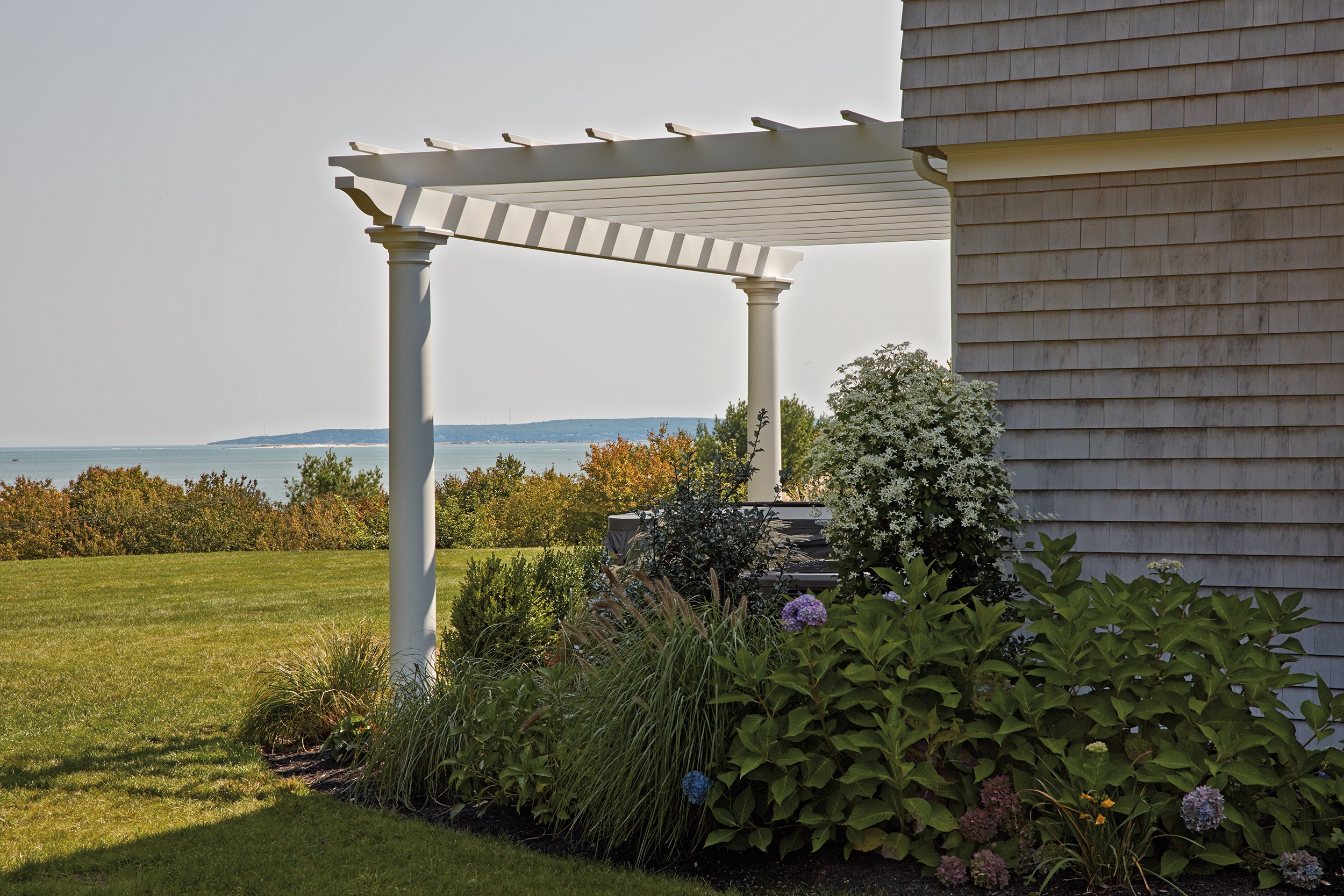

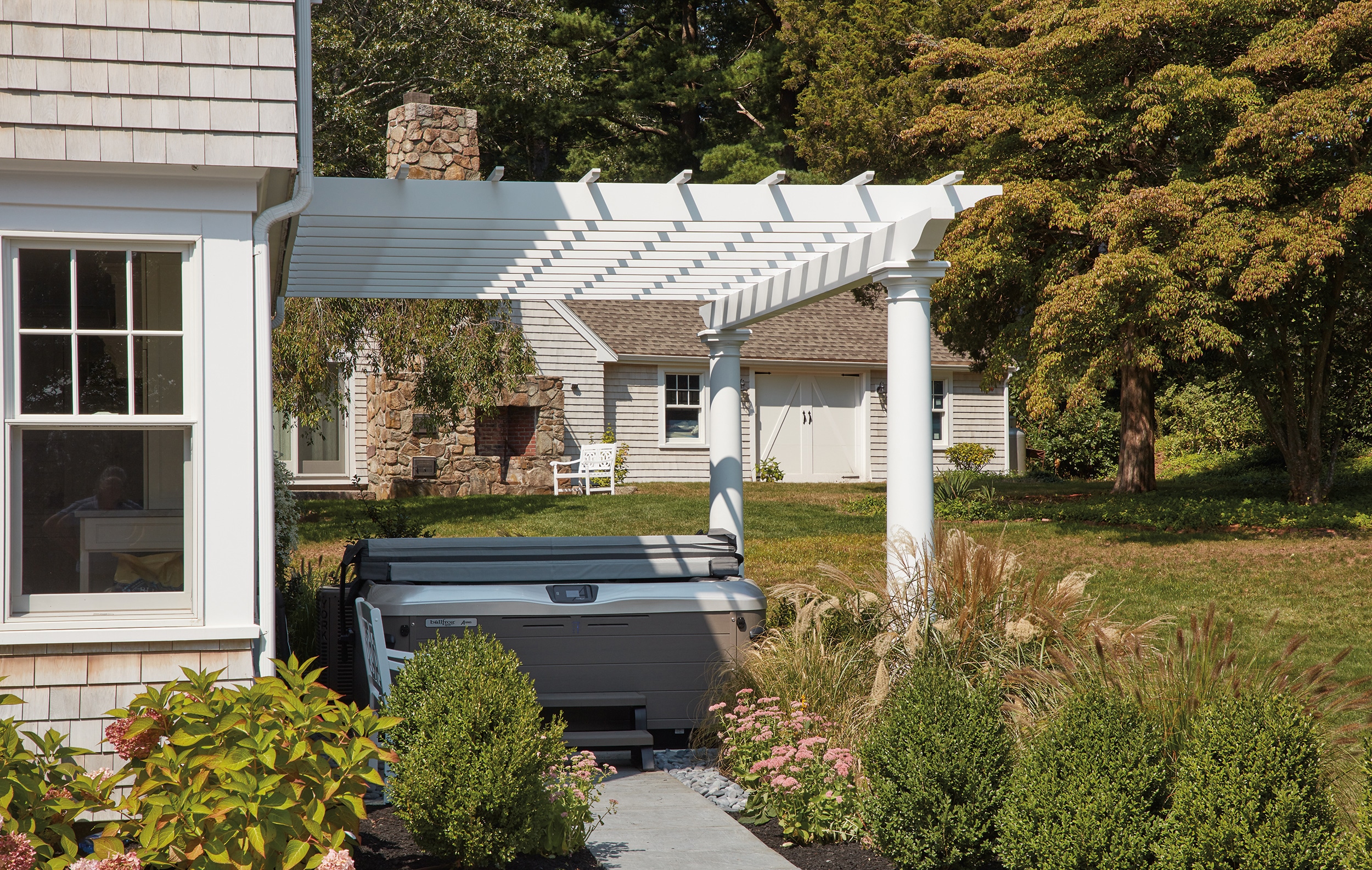

Attached Pergola

Beautifully seamless indoor-outdoor flow.

Designing your Attached Pergola

Extending directly from your home, the attached pergola is available with a straight top and customizable design options for column, beam and lath end cut styles—as well as add-on features like shade canopies and side screens.

PERGOLA SIZE

Attached pergolas are available in various size combinations with widths ranging from 8' to 15.5' and lengths ranging from 10' to 15.5'.

section3Image

COLUMNS STYLE

Plain and Paneled columns are crafted in solid cellular vinyl, and Round Tapered columns are made of fiberglass. All columns have a hot-dipped galvanized steel pipe core. Choose the design that best suits your style.

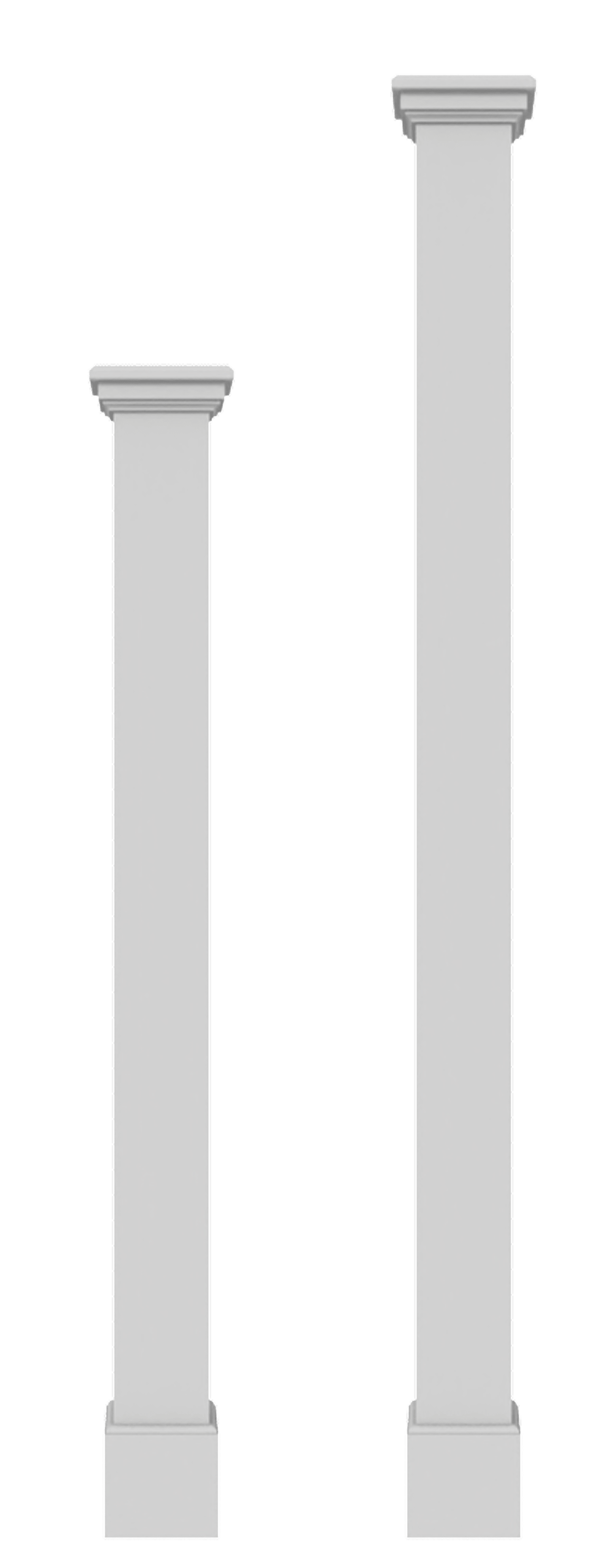

Plain

Plain column pillar

8" or 10" sq 8'H or 10'H

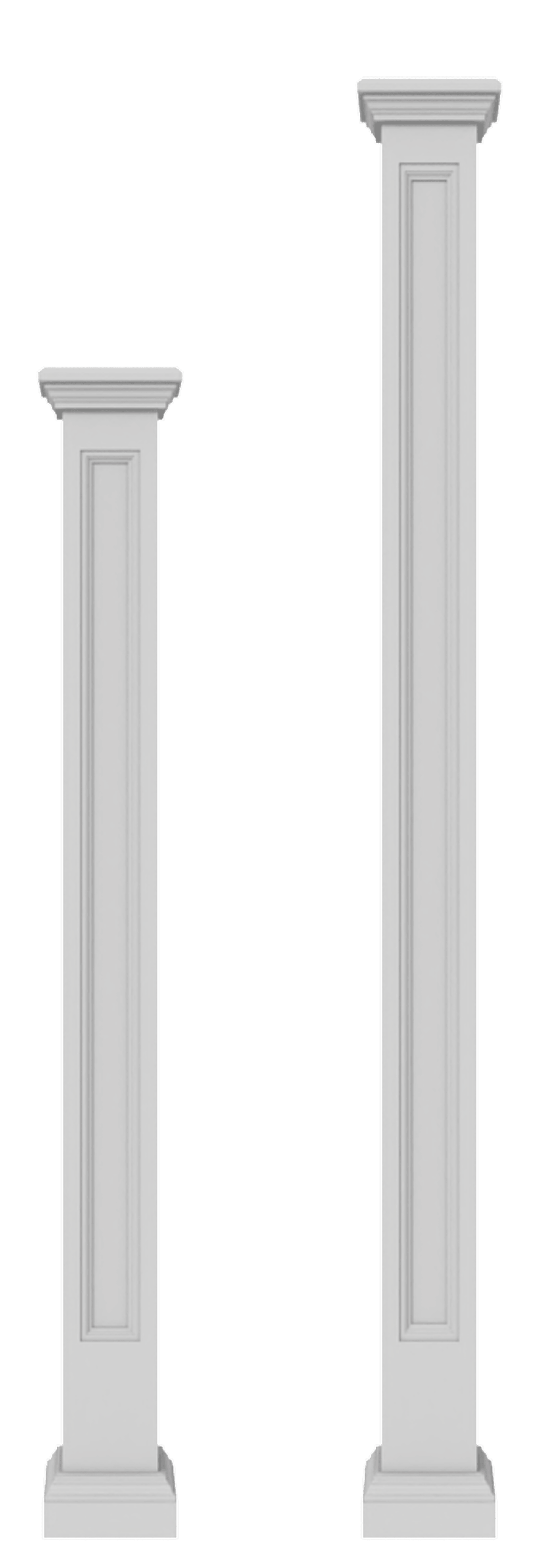

Paneled

Paneled column pillar

8" or 10" sq 8'H or 10'H

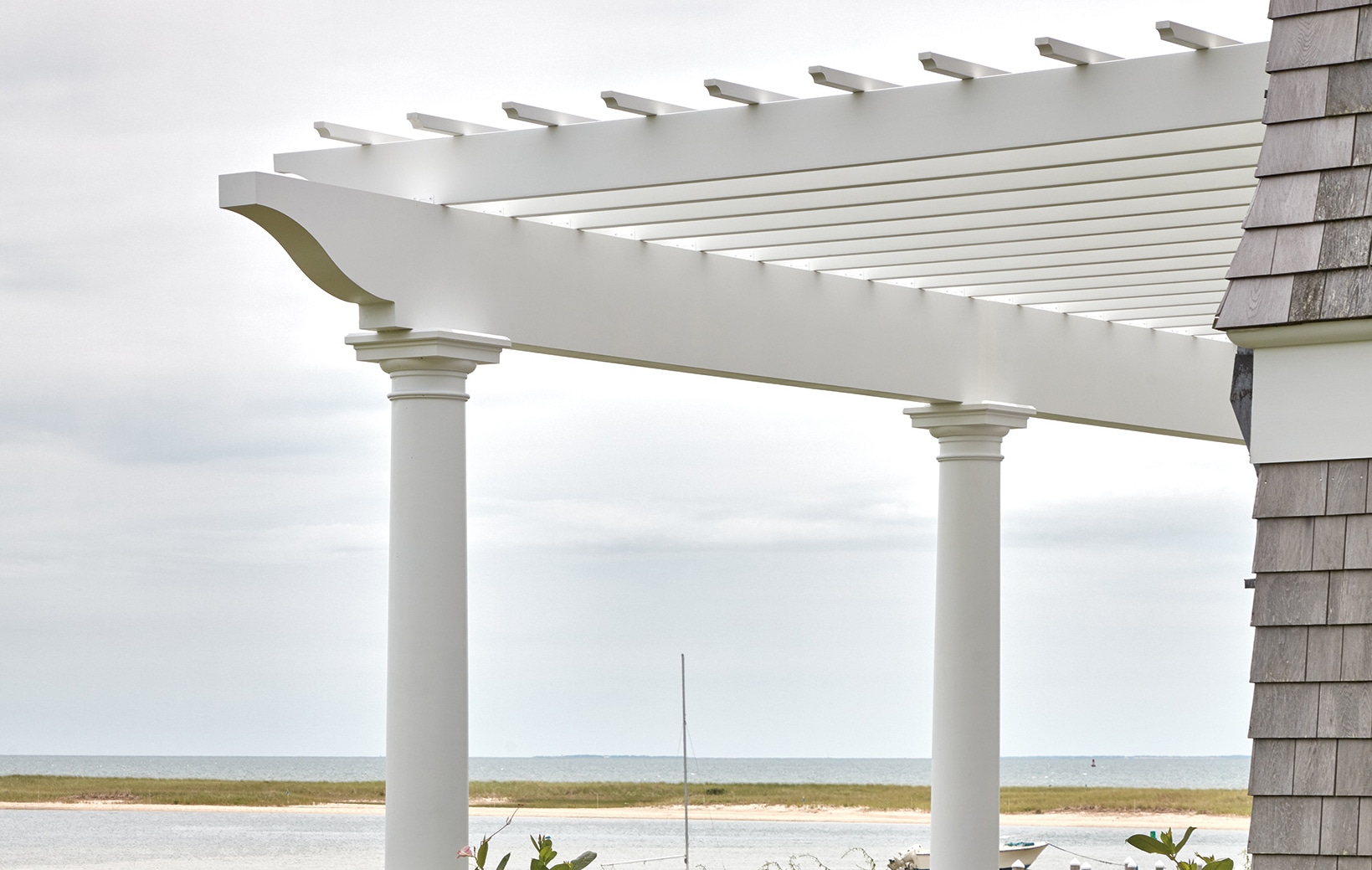

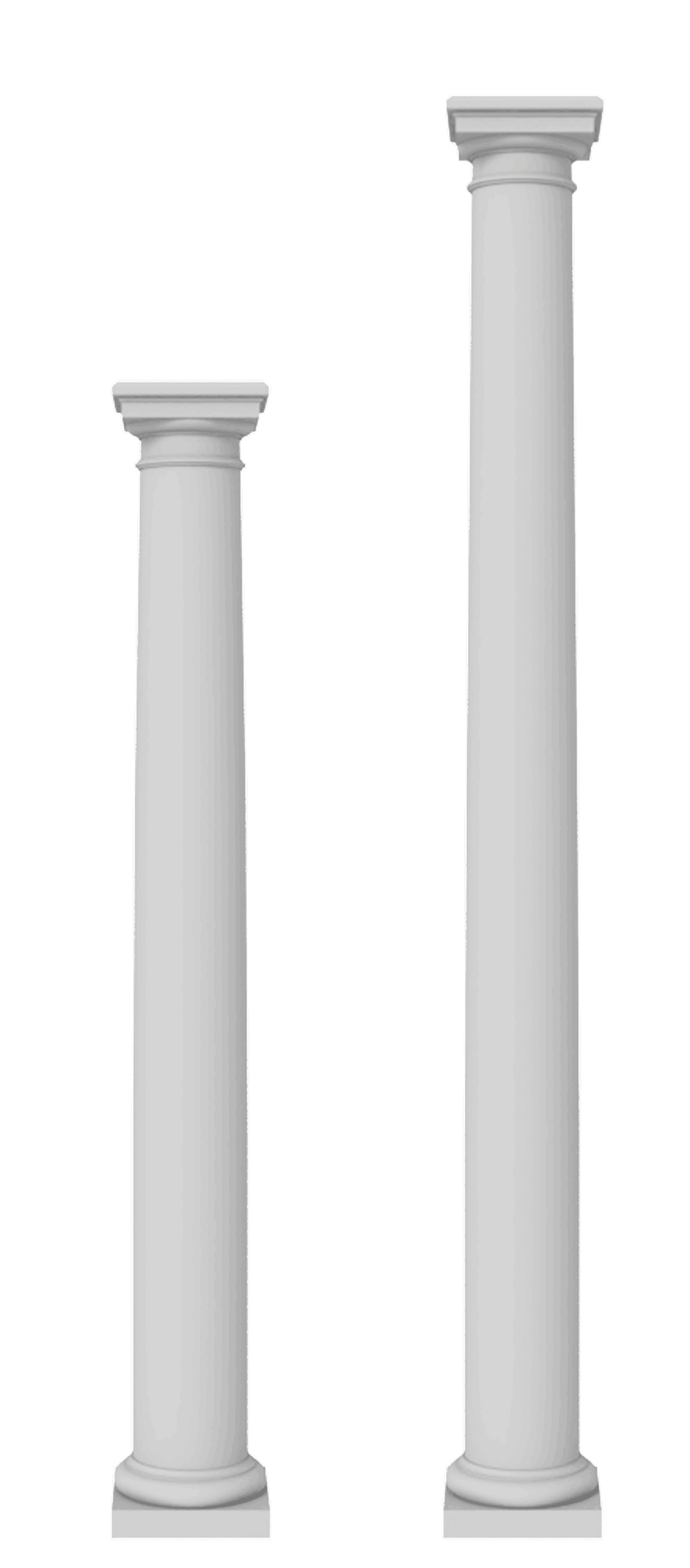

Round Tapered

Round Tapered column pillar

10" dia 8'H or 10'H

Pergola with End Cuts

End Cut Styles

Customize the beam and joist end cuts. Standard with Ogee.

  • Ogee

    Ogee

  • Diagonal

    Diagonal

  • Flat

    Flat

  • Cove

    Cove

  • Marston

    Marston

Choose the lath end cut style. Standard with Cove.

  • Cove

    Cove

  • Diagonal

    Diagonal

  • Straight

    Straight

CRAFTED FROM PREMIUM MATERIALS

Each Attached Pergola is expertly handcrafted from high-quality solid cellular vinyl—an advanced material that captures the beauty and strength of wood while resisting moisture, corrosion, and termites. Unlike the vinyl found in big box stores, Walpole Outdoors’ solid cellular vinyl is engineered for lasting performance you can see and feel—and it’s backed by a 25-year limited warranty.

White pergola structures against blue sky with landscaping

FACTORY FINISHED IN WHITE - WITH COLOR OPTIONS TO SUIT YOUR STYLE

Pergolas arrive pre-finished in classic white. Prefer something different? Choose from our signature paint colors or request a custom color match for a personalized touch.

White

Functional Gray

Iron Ore

Woodspice

Verde Green

SHADE THAT WORKS AS BEAUTIFULLY AS IT LOOKS

Enhance your pergola with smart, stylish upgrades that add comfort and functionality—perfect for enjoying your outdoor space even more.

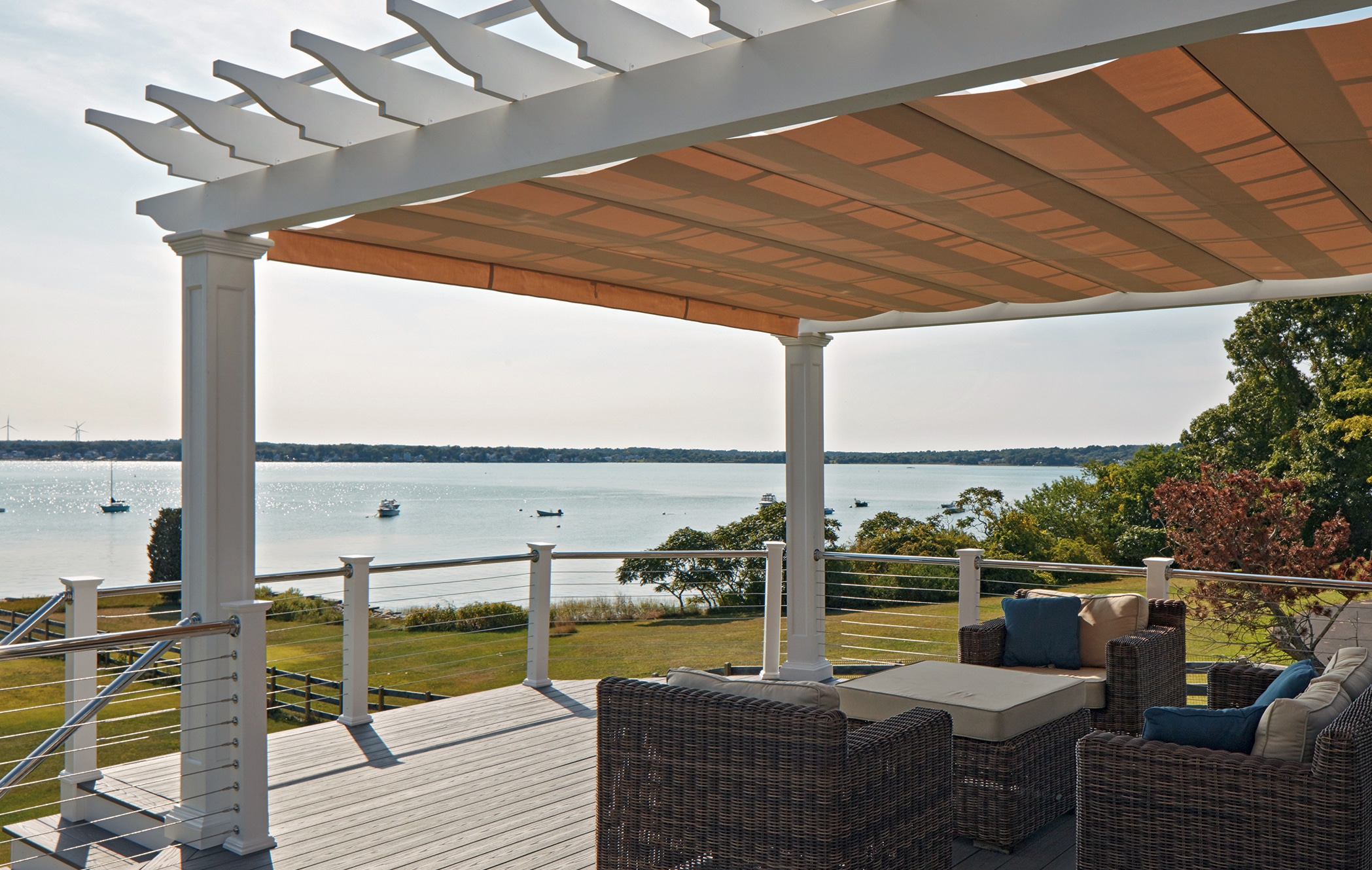

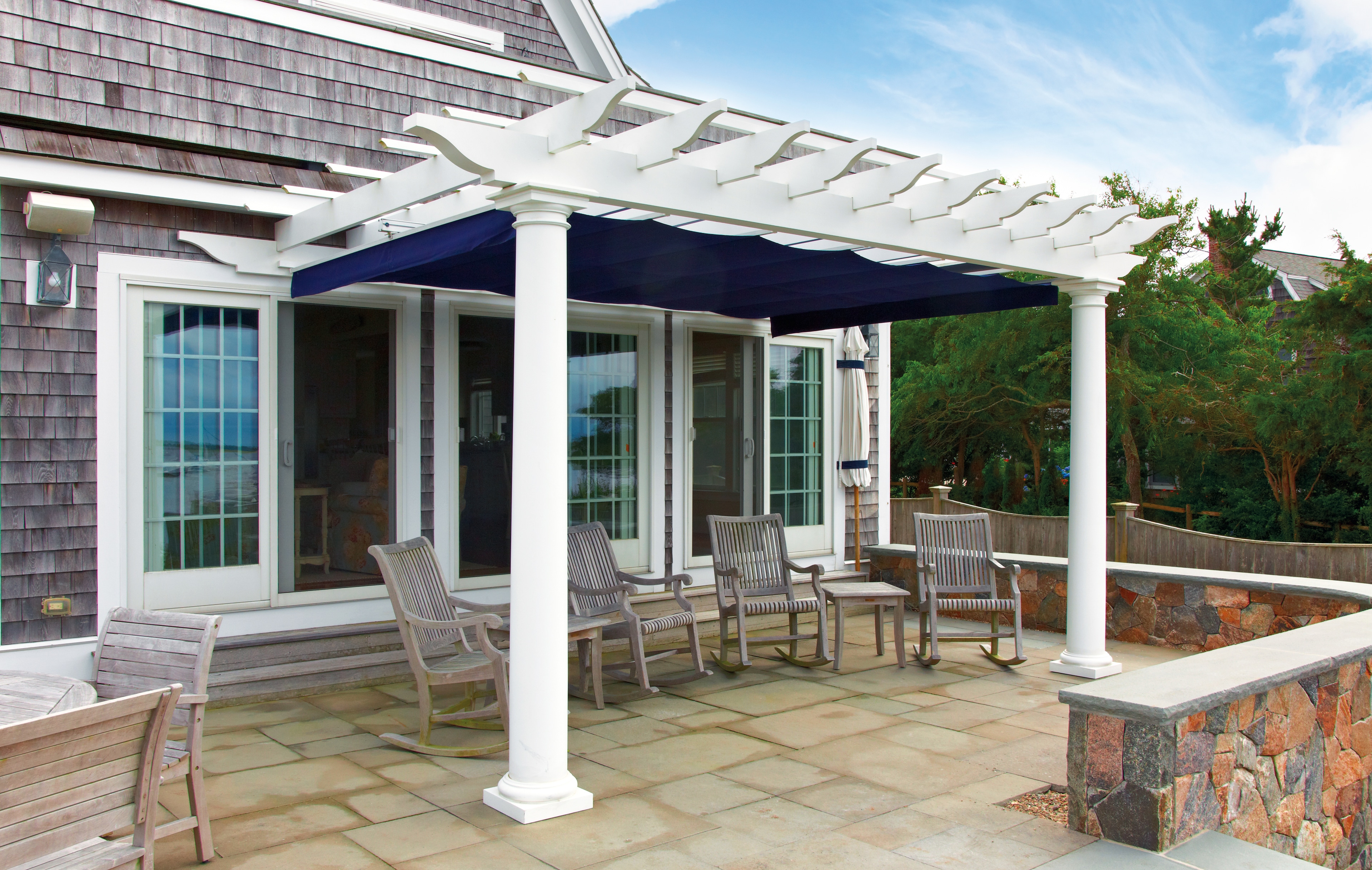

Underside Shade Canopy

Underside Shade Canopy

Sunbrella rain-resistant fabric is available in over 140 beautiful solids and stripes and 13 Harbor-Time waterproof fabrics. Manual and motorized (straight top only) canopies are available.

Side Screen

Side Screen

Retractable screens provide an elegant and reliable motorized side shade for pergolas. Available in widths of 10’, 12’, 14’, and 16’. Can be used with underside canopy.

Slide 1
Slide 2
Slide 3
Slide 4
Slide 5
Slide 6
Slide 7

ATTACHED PERGOLA TECHNICAL SPECIFICATIONS

Size

Plain Column: 8" sq or 10" sq

8’H or 10’H

Paneled Column: 8" sq or 10" sq

8’H or 10’H

Round Column: 10" diameter

8’H or 10’H

Top: Measured on-center of posts

  • 8’W × 10’L*
  • 8’W × 12’L*
  • 8’W × 14’L*
  • 8’W × 15.5’L*
  • 10’W × 10’L
  • 10’W × 12’L
  • 10’W × 14’L
  • 10’W × 15.5’L
  • 12’W × 12’L
  • 12’W × 14’L
  • 12’W × 15.5’L
  • 14’W × 14’L
  • 14’W × 15.5’L
  • 15.5’W × 15.5’L*

Custom sizes available.

Beams: 3.5" × 7.25" (nominal 4×8)

Laths: 1.5" sq (nominal 2×2)

Rafters: 1.5" × 7.25"

reinforced with structural aluminum

Material

Solid Cellular Vinyl

Optional Features

  • Underside Shade Canopy (manual or motorized)
  • Side Screen (manual or motorized)

Installation

  • Installation in soil—dig holes, set with concrete
  • Installation on solid walls—core drill holes for columns, set with mortar or concrete
  • Installation on pads or patios—core drill or cut holes, set with concrete
  • Installation on decks—varies by deck height

For customers within our services areas, Walpole Outdoors offers professional installation from our certified crews.

Warranty Information

25-year limited product warranty covers products exhibiting splitting, cracking, extruded skin peeling, abnormal discoloration, rot, termite attack, and/or general decay caused by or a result from the manufacture of defective material.

View the comprehensive Product Warranty.

Since 1933, Walpole Outdoors has earned a national reputation for quality and structural integrity through a commitment to our customers’ needs. When you invest in a Walpole Outdoors pergola, you can feel secure in the knowledge that it has been designed and handcrafted to the very highest standards.

Expert Installation When You Need It

We recommend professional installation for the Attached Pergola to ensure the highest level of fit and finish. Customers in our local service areas can rely on Walpole Outdoors’ certified crews—fully trained employees who follow our high standards for craftsmanship, care, and attention to detail every step of the way
